Sensor 40khz Piezoelectric Ultrasonic Transducer for UAV

  • MSO-PT1640H12R
  • 16 * 12mm
  • Open Type
  • 60°±15° (-6dB)
  • 40±1.0KHz
  • ≥110dB
  • ≥-67dB
  • Transimitter&Receiver

Specification

Item

Transmitter

Receiver

Note

Center frequency

40.0±1.0KHz


SPL

≥110dB

-------

0dB=0.0002μbar

Sensitivity

-------

≥-67dB

0dB=1volt/μbar

Directivity

60°±15°

-6dB typical

Capacitance

2500±30%pF


Housing material

Black Plastic


Measure distance

0.215m


Driving Voltage

≤30Vrms


Operating Temperature

-20+70


Storage Temperature

-35+85

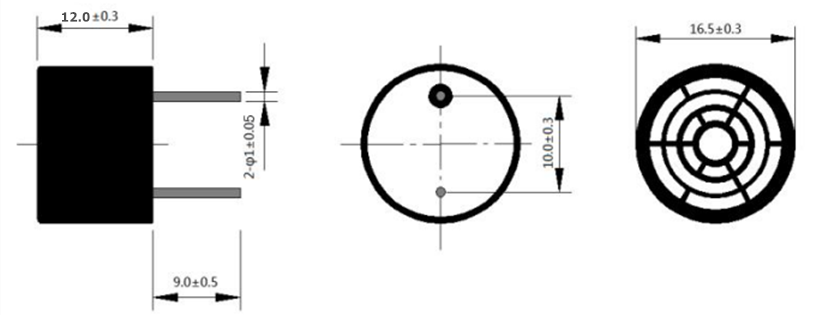

Appearance Drawing
