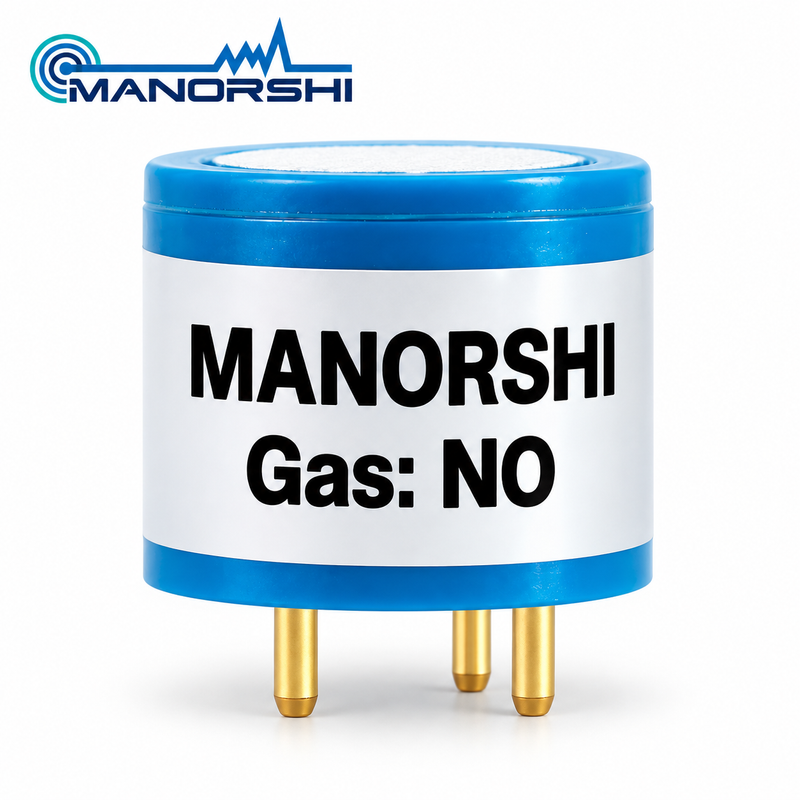

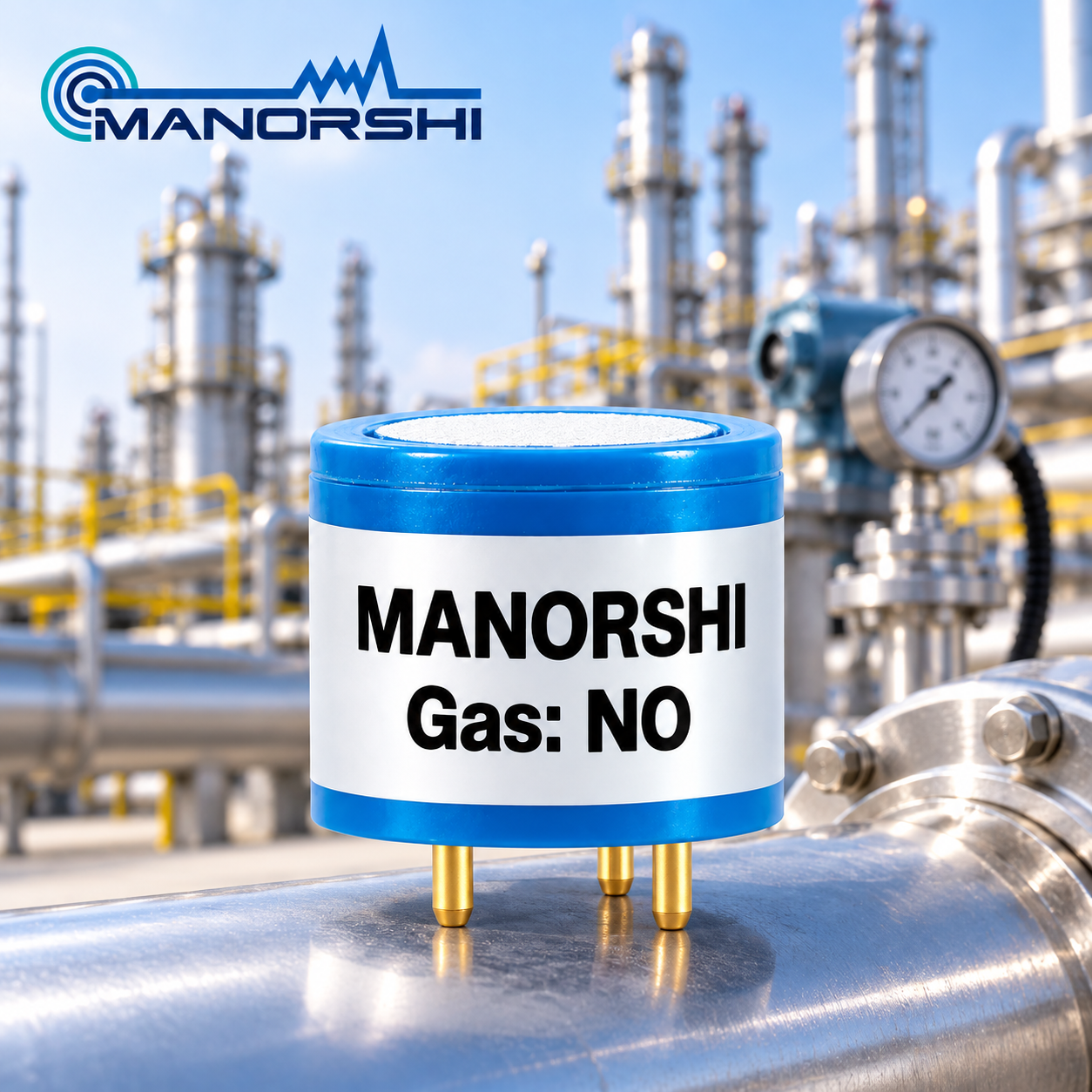

MNS-4NO-250 Electrochemical Nitric Oxide Gas Sensor
The MANORSHI MNS-4NO-250 is a potentiostatic electrochemical sensor designed for nitric oxide (NO) gas detection.
Nitric oxide and oxygen undergo corresponding oxidation-reduction reactions at the working electrode and counter electrode, releasing electric charges and generating a current. The generated current is proportional to the nitric oxide concentration, allowing the NO concentration to be determined by measuring the current. MNS-4NO-250 Nitric oxide gas se…
Key Features
Technical Specifications
Parameter | Specification |
Product Model | MNS-4NO-250 |
Target Gas | Nitric Oxide (NO) |
Detection Principle | Potentiostatic Electrochemical |
Measuring Range | 0–250 ppm |
Maximum Load | 1000 ppm |
Sensitivity | 0.4 ± 0.1 μA/ppm |
Response Time | ≤30 s |
Resolution | 0.5 ppm |
Bias Voltage | +300 mV |
Linearity | Linear |
Long-Term Stability | <2% Signal Value/Month |
Temperature Range | -20°C to +50°C |
Pressure Range | 800–1200 mbar |
Humidity Range | 15%–95% RH, Non-condensing |
Storage Temperature | 10°C to +30°C |
Service Life | 2 Years |
Warranty Period | 1 Year |
Maximum O/C Voltage | 1.3 V |
Maximum S/C Current | <1.0 A |
Maximum Current at 1000 ppm | <1 mA |
Cross-Interference
Interfering Gas | Concentration | Output Signal |
CO | 100 ppm | 0 ppm |
H2S | 25 ppm | 27 ppm |
SO2 | 5 ppm | <1 ppm |
NO2 | 5 ppm | 1.5 ppm |
Applications
Petroleum industry NO detection
Petrochemical process monitoring
Pharmaceutical production
Environmental protection
Nitric oxide gas detection equipment
Industrial gas monitoring systems
FAQs
What gas does the MNS-4NO-250 detect?
The sensor is designed to detect nitric oxide (NO).
What sensing principle does it use?
It uses a potentiostatic electrochemical sensing principle.
What is the measuring range?
The specified measuring range is 0–250 ppm.
What is the maximum load?
The specified maximum load is 1000 ppm.
What is the sensitivity?
The specified sensitivity is 0.4 ± 0.1 μA/ppm.
What is the response time?
The specified response time is ≤30 seconds.
What is the resolution?
The specified resolution is 0.5 ppm.
Does the sensor require a bias voltage?
Yes. The specified bias voltage is +300 mV.
What is the operating temperature range?
The specified temperature range is -20°C to +50°C.
What is the expected service life?
The specified service life is 2 years.
Where can the MNS-4NO-250 be used?
The datasheet specifies nitric oxide detection in petroleum and petrochemical applications, pharmaceutical production and environmental protection fields.
