1MHz Waterproof Ultrasonic Fuel Level Sensor Water Flow Sensor

  • MSW-A211MH11TR
  • 21 * 11MM
  • Enclosed
  • 8°±2°
  • 970±30 KHz
  • Dual use

Specification

Item

Specification

Item

Specification

Type

Liquid quality measuring transducer

Operation voltage

3V~100V

Model

MSW-A211MH11TR

Operation temperature

4~+50

Frequency(kHz)

1.00MHz±3%

Storage temperature

-30~+80

Comprehensive sensitivity(V)

(0dB=2Vp-p 8pulses L=80mm)

>150mv(Self-Transmitting and Self-Receiving )

Waterproof grade

IP68

Beam angle(-3dB)

6°

Housing material

PPS

Electrostatic capacitance(pF)

1300pF±20%

Cable specification

Two core shielded cable 40CM

Impedance value(Ω)air

<60Ω

Corrosion resistance

Weak acid and alkali resistance

Withstand voltage

>2.6Mpa

Cable length

400mm(Customizable)

Weight(g)

14g/pc

Mark

Probe structure size can be customized according to user needs

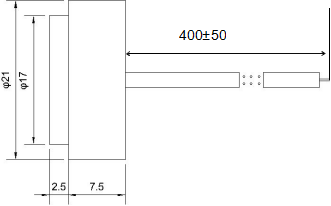

Appearance Drawing
