125KHz High Frequency Ultrasonic Liquid Level Sensor

  • MSW-P25125H25TR--W
  • 25*25MM
  • Enclosed
  • 14°±2° (-6dB)
  • 125.0±5.0KHz
  • Dual use

Product Description

Part Number

MSW-P2540H25TR--W

Construction

High-frequency

Using Method

Dual use

Center frequency

125.0±5.0KHz

Bandwidth

10.0Khz

Echo Sensitivity

-60dB min

Min.Parallel Resistance

 250Ω±30%

Capacitance

1200±20%pF

Typical Sensing Range

0.2~4m

Directivity deg

14°±2°(-6dB)

Max.Input Voltage

500Vp-p

Protection Class

IP68

Operating Temperature

-20-+80℃

Storage Temperature

-35-+85℃

Housing Material

Plastic

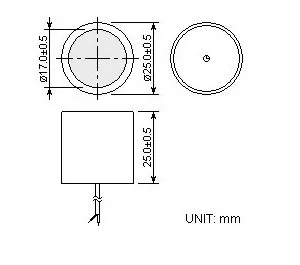

Dual Use 125KHz High Frequency Ultrasonic Liquid Level Sensor
