3V 70dB 4kHZ Square Thin SMD Piezo Buzzer

  • SM16PT02A
  • 16.0 * 16.0 * 2.5mm
  • 3Vp-p
  • 4000±500Hz
  • ≥70dB@10cm
  • ≤2mA
  • 1~20Vp-p

Specification

TYPE (UNIT)SM16PT02A
Min. Sound Output at 10cm (dB)70
Rated Voltage (Vp-p)3
Operating Voltage (Vp-p)1~20
Resonant Frequency (Hz)4000+/-500
Max. Current Consumption (mA)2
Capacitance at 1,000HZ (pF)14000+/-30%
Operating Temperature (C)-20~+70
Storage Temperature (C)-30~+80
Weight (g)0.9

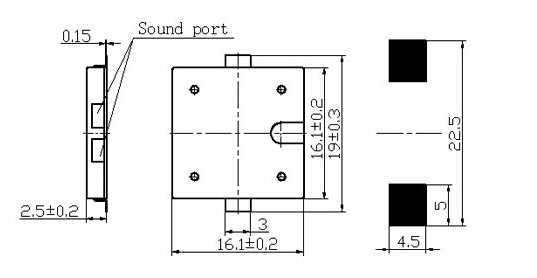

Appearance Drawing
