3v External Drive 5v Ac Smd Piezo Buzzer

  • SM10PT03A
  • 10.0 * 3.0mm
  • 3Vp-p
  • 15000±30%Hz
  • ≥75dB@10cm
  • ≤3mA
  • 1~25Vp-p

Specification

RESONANT FREQUENCY

HZ

4000

OPERATING VOLTAGE

Vp-p

1-25

RATED VOLTAGE

Vp-p

3

SOUND PRESSURELEVEL

dB

75

CAPACITANCE 120Hz

pF

15000±30%

RATED CURRENT

mA

≤3

OPERATING TEMPERATURE

-20+70

STORAGE TEMPERATURE

-30+80

HOUSING MATERIAL


LCP

WEIGHT

GRAM

0.5

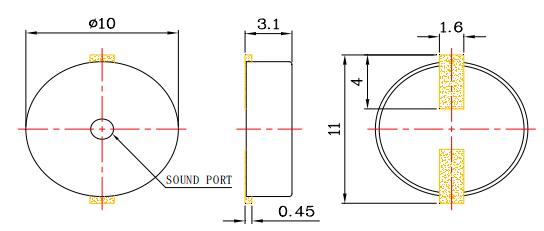

Appearance Drawing

10pt03a
