1.5V 3.6V 5V 85dB 2730Hz External Magnetic Micro Buzzer

  • SM09ET04A
  • 9.0 * 4.0mm
  • 3.6Vp-p
  • 2730±500Hz
  • ≥85dB@10cm
  • ≤100mA
  • 2.5-4.5Vp-p

Specification

NO.ItemUnitSpecificationCondition
1Rated VoltageVp-p3.6
2Operating VoltVp-p2.5-4.50V
3Mean CurrentmAMax.100Applying rated voltage 2730HZ square wave 1/2 duty
4Coil ResistanceΩ16.0±3.0
5Sound OutputdBA85/10cmDistance at 10cm(A-weight free air), Applying rated voltage 2730HZ,square wave,1/2duty
6Rated FrequencyHz2730
7Operating Temp

-30-+70


8Storage Temp

-40-+85


9Dimensionmmφ9.0×H3.2See attached drawing.
10Weightgram0.6
11Material
LCP(Black)
12Terminal
Pin TypeSee attached drawing
13Storage lifemonth66 months preservation at room temp(25±3℃),Humidity40%
14Environmental
RoHS
Protection Regulation

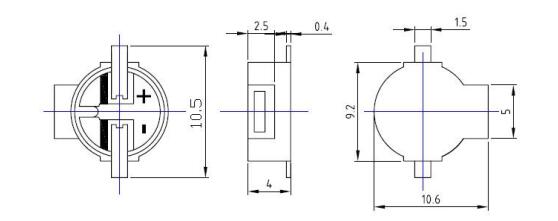

Appearance Drawing

09ET04A
