40khz Open Type Ultrasonic Sensors Transmitter And Receiver

  • MSO-A1640H12TR
  • 16 * 12mm
  • Open Type
  • 80°±15° (-6dB)
  • 39±1.0KHz
  • ≥115dB min.
  • ≥-68V/u Mbar
  • Transmitter&Receiver
  • MSO-A1640H12TR.pdf

Specification

ItemUnitSpecification
Construction
Open structure
Using Method

Transmitter/Receiver

Center FrequencyHz39±1.0k
SPLdB

≥115 min.

SensitivitydB

≥-68V/u Mbar

Allowable input voltag





150Vp-p(39KHz)


Directivitydeg80±15
CapacitancePF2400±20% at 1KHZ




Response time for receiver


Max 1.6

Operating Tem.Range-20 to 70
Typical sensing range
0.2 – 18m
Housing Material
Aluminum

   Weight                                           g                                                       2.31

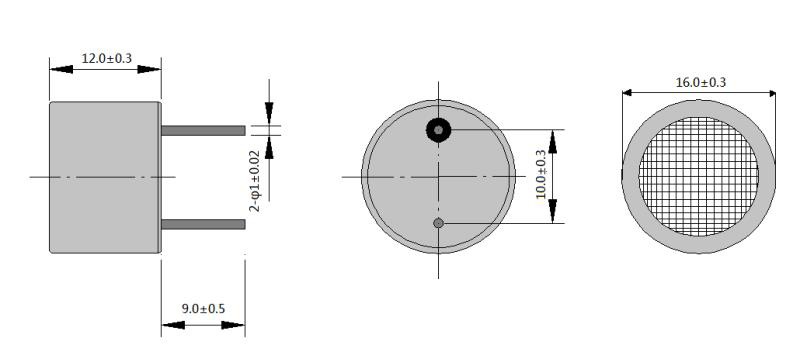

Appearance Drawing
