40khz Distance Ultrasonic Sensors Transmitter

  • MSO-A2540H14T
  • 25 * 14mm
  • Open Type
  • 60°±15° (-6dB)
  • 40±1.0KHz
  • 100dB min.
  • -72dB min.
  • Transmitter

Specification

Center frequency40±1.0KHz
Transmitting Sound Pressure Level100dB min.
Receiving Sensitivity-72dB min.
Echo Sensitivity ≥230mV
Ringing(ms)1.2 max
Capacitance at1Khz±20% 2400pF
Max.Driving Voltage(cont.)20Vrms
Total Beam Angle-6dB 47° typical
Decay Time ≤1.2ms
Operating Temperature-30~+80℃
Storage Temperature-30~+80℃

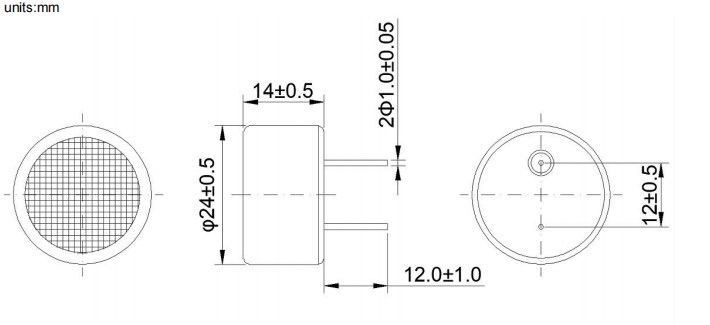

Appearance Drawing

7
