8 Ohm Mini SMD Speaker 15*4.0mm For Big Headphones

  • MS1540A
  • 8±20% ohm
  • 0.5(0.8)
  • 88±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W
  • fo~6000

Specification

Model No. MS1540A
Rated Impedance (ohm)8±20%
Rated (Max.) Power (W)0.5(0.8)
Resonant Frequency (Hz)800±20%
Frequency Range (Hz)fo~6000
SPL (dB)88±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W
Buzzer &RattlesMust be normal at sine wave 2Vrms
Frame MaterialLCP
Operating Temperature  (℃)-30~+85
Storage Temperature    (℃)-40~+105
Weight (g)1.5
RoHSYes

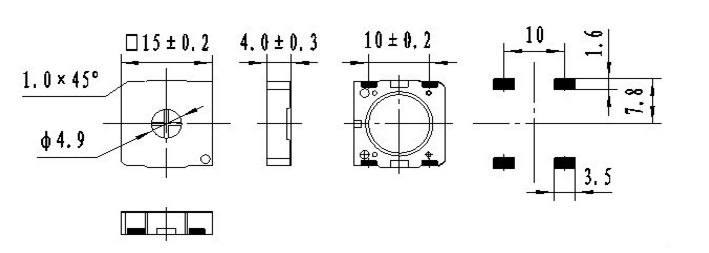

Appearance Drawing
