1.5V 80dB 85dB Separate PCB Magnetic Buzzer

  • MSES12D
  • 12 * 8.5mm
  • 1.5VDC
  • 2048±500Hz
  • ≥85dB@10cm
  • ≤30mA
  • 1~2VDC

Specification

Model NoMSES12DMSES12D
Rated Voltage1.5v1.5v
Operating Voltage1~2v1~2v
Max.Rated Current30mA10mA
Coil Resistance(DC)16±4Ω42±6Ω
Coil Impedance(AC)40Ω120Ω
Min. Sound Pressure Level85dB/10cm80dB/10cm
Resonant Frequency2048Hz2048Hz
Operating Temperature-20℃~+70℃-20℃~+70℃
Weight2g2g

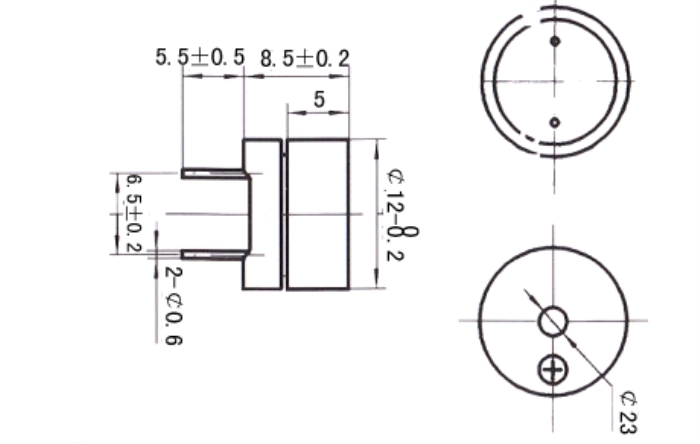

Appearance Drawing
