Home / Passive Type / 0-20mm / 20mm*4mm 12V 80dB 3.5kHz ac buzzer with wires
Share to:

20mm*4mm 12V 80dB 3.5kHz ac buzzer with wires

  • ME20D04W20
  • 20.0 * 4.2mm
  • 12Vp-p
  • 3500±500HZ
  • ≥80dB@10cm
  • ≤4mA
  • 3~20Vp-p
  • ME20D04W20.pdf

Specification

TYPE (UNIT)ME20D04W20
Min. Sound Output at 10cm (dB)80
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)3~20
Resonant Frequency (Hz)3500±500
Max. Current Consumption (mA)4
Capacitance at 1,000HZ (pF)24000±30%
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70

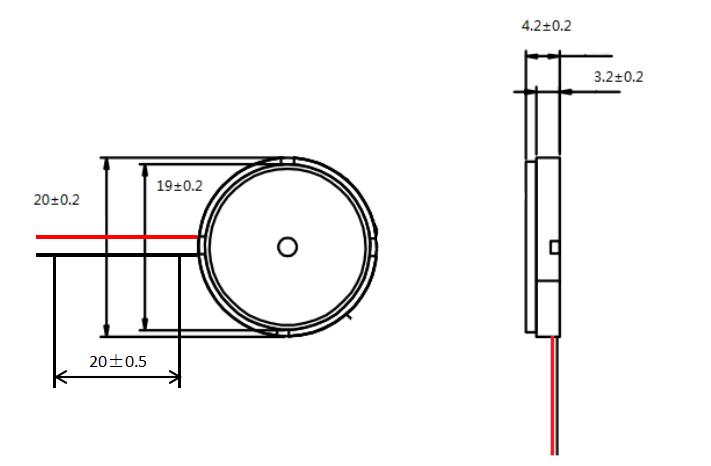

Appearance Drawing

ME20D40W20
