12V 80db 4000KHz Self Drive Piezo Pin Buzzer

  • MSPT12A
  • 12.7 * 6.8mm
  • 12Vp-p
  • 4000±500HZ
  • ≥80dB@10cm
  • ≤2mA
  • 1~25Vp-p
  • MSPT12A.pdf

Specification

TypeUnitMSPT12A40P12
Rated VoltageVp-p12
Operating VoltageVp-p1.0~25.0
*Rated Current (MAX)mA2
*Min.Sound Output at 4.0KHz/10cmdB80
Capacitance at 1KHzpF12000±30%
*Resonant FrequencyHz4000
Operating Temperture°C-20~+70
Storage Temperture°C-30~+80
Housing Material
PPO

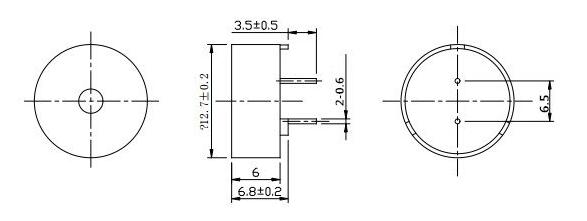

Appearance Drawing
