5v 12V Passive Eectrical Piezo Buzzer For Print Machine

  • MSPT14A
  • 14.0 * 7.0mm
  • 5Vp-p
  • 4000±500HZ
  • ≥80dB@10cm
  • ≤3mA
  • 1~25Vp-p

Specification

TYPENITMSPT14A
Min. Sound Output at 10cmdB8082
Rated VoltageVp-p5v12v
Operating VoltageVp-p125125
Resonant FrequencyHz4000±5004000±500
Max. Current ConsumptionmA33
Capacitance at 1,000HzpF12000±30%12000±30%
Operating Temperature-20+70-20+70
Storage Temperature-30+80`-30+80`
Housing material
PPOPPO
Weightg0.90.9

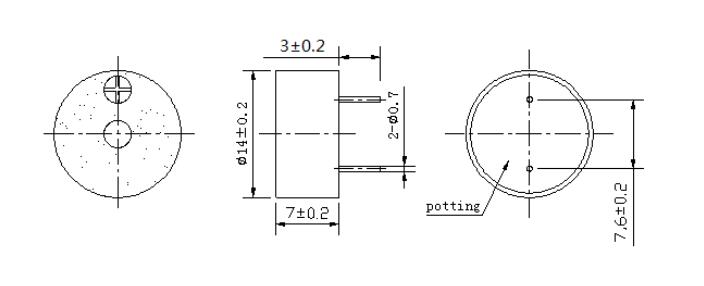

Appearance Drawing
