3V 70db 9 * 9 * 1.9mm SMD small piezo Buzzer

  • SM09PT02A40V3TS
  • 9.0 * 9.0* 1.9mm
  • 3Vp-p
  • 4000±500Hz
  • ≥70dB@10cm
  • ≤5mA
  • 1 ~25Vp-p
  • SM09PT02AV3TS.pdf
Availability:

Product Description

No.

Item

Unit

Specification

1

Rated voltage(Square Wave)

Vp-p

3

2

Operating Voltage

Vp-p

1 ~25

3

Min Sound Output at 4.0khz/10cm

dB

70(Typ.75)

4

Rosonant Frequency

Hz

4000

5

Capacitance at 1KHz

pF

12000±30%

6

Operating Temperature

-40~ +85

7

Storage Temperature

-40~ +85

8

Weight

g

0.2

9

Housing Material


LCP

10

Tone Nature


Single

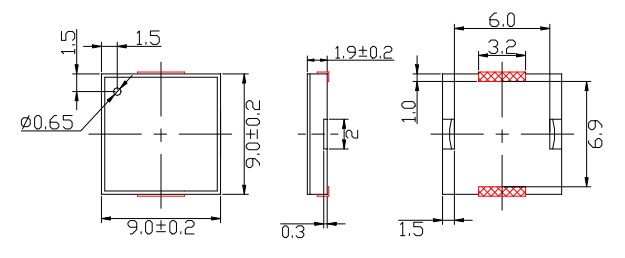

Appearance Drawing

458
