3V SMD Magnetic Buzzer 9025 Used for Medical Instrument

  • SM09ET03AV3R16SH
  • 9.0 * 2.5mm
  • 3Vo-p
  • 2700±500Hz
  • ≥85dB@10cm
  • ≤90mA
  • 2.5~4.5Vo-p
  • SM09ET03AV3R16SH(C).pdf
Availability:

Specification

ItemUnitSpecificationCondition
Oscillation FrequencyHz2700Vo-p=1/2duty , square wave
Operating VoltageVp-p2.5 ~ 4.5
Rated VoltageVp-p3
Current ConsumptionmAMAX. 90at Rated Voltage
Sound Pressure LeveldBMIN. 85at 10cm at Rated Voltage
Coil ResistanceΩ16±3
Operating Temperature-20 ~ +70
Storage Temperature-30 ~ +80
DimensionmmΦ9.0x H2.5See appearance drawing
Weight (MAX)gram1
Environmental  Protection Regulation
 RoHS

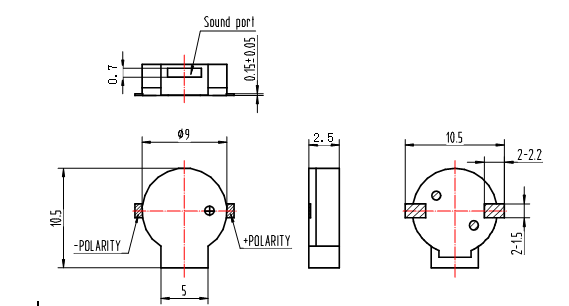

Appearance Drawing
