24V 100dB Wire Buzzer Working Of Piezo Active Buzzer

  • MSPS30H35W100V24CT
  • 29.5 * 24.5mm
  • 24VDC
  • 3500±500Hz
  • ≥95dB@30cm
  • ≤20mA
  • 1.5~28VDC
  • MSPS30H35W100V24CT.pdf
Inquire Add to Basket

Specification

Model NO

MSPS30H35W100V24CT

Rated Voltage24VDC
Operating Voltage

1.5-28VDC

Max.Rated CurrentMax.20mA

Min Sound Output at 30cm

Min.95dB
Resonant Frequency3500±500Hz
Operating Temperature-20 ℃~+60 ℃
Storage Temperature-30 ℃~+70 ℃

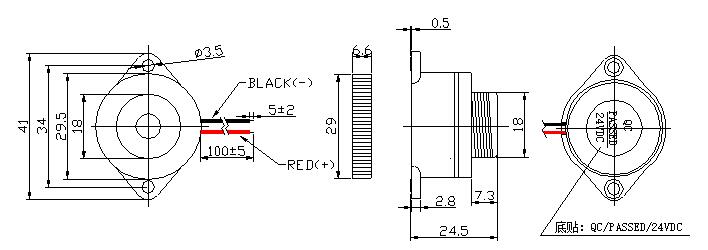

Appearance Drawing

MSPS30H35W100V24CT

MSPS30H35W100V24CT
