Product Overview
The ASS70A DC 6-15V soft chirp directed electronics siren is a compact high-output alarm siren designed for security systems, vehicle warning systems, access control devices, electronic alarm panels, and industrial warning equipment. With 15W or 20W power options, 6/10ohm impedance, and 113/118dB sound output at 1 meter, it provides strong audible warning performance for demanding alarm applications.
This electronic siren supports 1-tone or 6-tone melodic sound options, making it suitable for different alert patterns and warning signal requirements. The black ABS housing provides a practical and durable enclosure for alarm installations.
Designed for DC-powered alarm systems, this siren can operate within DC 6-15V and is commonly used in DC 12V security and vehicle electronics applications.
Key Features
DC 6-15V operating voltage range supports common low-voltage alarm and security systems.
15W and 20W power options provide flexible selection for different sound output requirements.
113/118dB sound output at 1 meter helps deliver a strong audible warning signal.
1-tone or 6-tone melodic sound options support different alarm patterns and warning scenarios.
ABS housing material and black appearance make it suitable for practical indoor and equipment-mounted applications.
Compact 70mm siren design supports easier integration into alarm devices, control panels, and vehicle security systems.
Technical Specifications
| Parameter | Specification |
| Model | ASS70A |

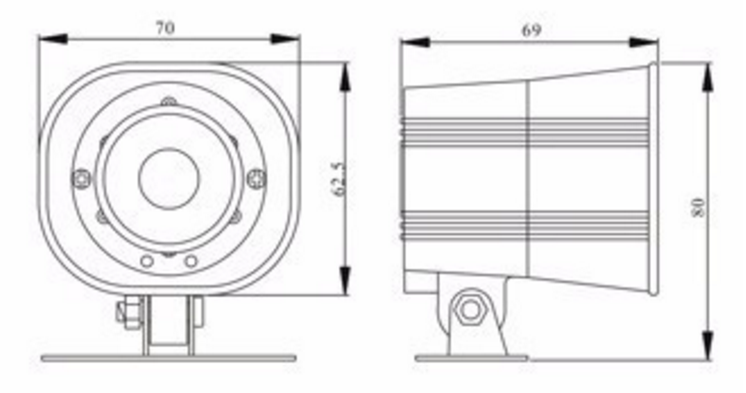

| Dimension | 70mm |
| Power | 15/20W |
| Impedance | 6/10ohm |
| Voltage | DC 6-15V |
| Typical Voltage | DC 12V |
| Current | 600/1200mA |
| Sound | 1 or 6 Tone / Melodic |
| Sound Pressure Level at 1 Meter | 113/118dB |
| Material | ABS |
| Color | Black |
| Packing Condition | 60PCS/0.048CBM |
Applications
This electronic siren is suitable for car security systems, home alarm systems, access control systems, fire alarm equipment, anti-theft devices, industrial warning systems, emergency notification devices, control panels, and other electronic alarm products requiring loud sound output.
It is also suitable for OEM and ODM projects where manufacturers need a compact DC siren with strong sound pressure, selectable tone options, and reliable integration into low-voltage alarm circuits.
Working Principle
An electronic siren converts electrical energy into audible alarm sound through an internal sound generation circuit and acoustic output structure. When DC power is applied, the siren produces a loud warning signal designed to attract attention and indicate an alarm condition.
The 1-tone or 6-tone configuration allows the siren to generate different alarm sounds, helping users distinguish between warning types or meet specific alarm system design requirements.
Design and Installation Notes
For stable performance, the siren should be connected within the specified DC 6-15V voltage range, and the power supply should provide sufficient current for the selected 15W or 20W version.
Install the siren in a position where the sound outlet is not blocked. The final sound level can be affected by mounting position, enclosure structure, wiring quality, supply voltage, and surrounding acoustic conditions.
When used in security or warning systems, confirm the required impedance, tone mode, sound pressure level, and current rating before production or installation.
Why Choose This Electronic Siren
The ASS70A electronic siren combines high sound output, low-voltage DC operation, selectable tone options, and durable ABS housing. It provides a practical alarm sound solution for security devices, vehicle alarm systems, and industrial warning equipment.
With 60PCS/0.048CBM packing, it is suitable for bulk procurement, OEM production, and alarm product assembly projects.
FAQ
What is the operating voltage of this electronic siren?
This electronic siren operates within DC 6-15V and is commonly used in DC 12V alarm and security systems.
How loud is the ASS70A siren?
The siren provides 113/118dB sound output at 1 meter, depending on the selected power and configuration.
What applications is this DC siren suitable for?
It is suitable for car alarms, home security systems, access control systems, fire alarm devices, anti-theft equipment, industrial warning systems, and emergency alert devices.
What is the difference between 1-tone and 6-tone siren options?
A 1-tone siren produces a single warning sound, while a 6-tone siren can provide multiple alarm sounds or melodic warning patterns for different application requirements.
How should I select the right siren for an alarm system?
Select the siren based on operating voltage, current capacity, sound pressure level, tone type, impedance, power rating, installation space, and the acoustic requirements of the final alarm system.
