1 Or 6 Sound Tone Loudspeaker Horn for 115db Siren
Model:
ASS80A
Dimension:
80mm
Voltage:
DC 12V
Sound:
1 OR 6 TONE
Impedance:
4/6/8 ohm
SPL(1Meter):
110±3/115±3/120±3dB
Rated Power:
15/20W
Current:
600/1200mA Max
Availability:
Inquire
Add to Basket
Specification
Appearance Drawing
Specification
POWER
15 /20W
IMPED
4/6/8 ohm
VOLTAGE
DC 6-15V
CURRENT
600/1200mA
SOUND
1 OR 6 TONE
dB/M
110/115/120dB
MATERIAL
ABS
COLOR
BLACK / RED
PACKING
50PCS/0.042CBM

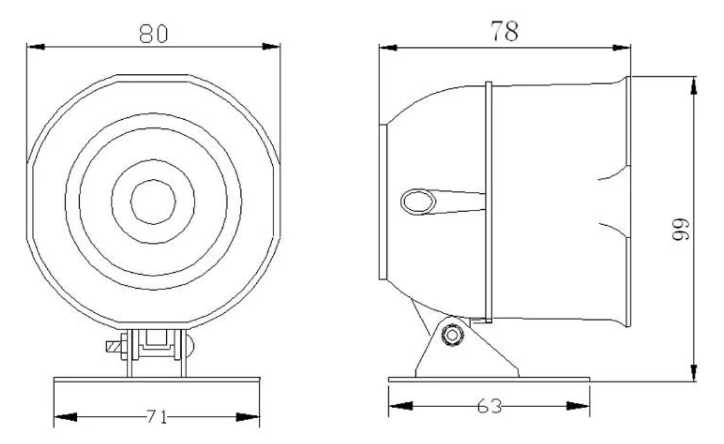

Appearance Drawing
