Waterproof Ultrasonic Sensor Transducer Distance 5 Meters

  • MSW-A2540H12TR
  • 25 * 12MM
  • Enclosed
  • 30°±10° (-6dB)
  • 40.0±1.0Khz
  • 110dB min
  • -72dB min
  • Dual use
  • 0.3~5m

Specification

Part Number

   MSW-A2540H12TR

Center frequency

40.0±1.0KHz

Bandwidth(FOM)

2.0KHz

Transmitting Sound pressure level

at resonant frequency;0dB re 0.0002μbar per 10Vms at 30cm

120dB min

Receiving Sensitivity

at resonant frequency 0dB=1 voly/μbar

-90dB min

Capacitance

2200pF±20%

Directivity deg(-6dB)

30°typical

Maximum input voltage

160Vp-p

Ringing

1.7ms max

Operating Temperature

-30-+70

Storage Temperature

-40-+80

Measure distance

0.3~5meter

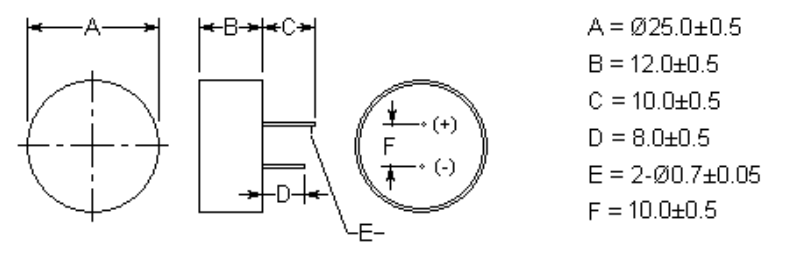

Appearance Drawing
