MSMX33A
23 * 17MM
1.5VDC
400±100Hz
≥70dB@20cm
≤20mA
1.3~2VDC
| Availability: | |
|---|---|
Specification
| Type | MSMX33A |
| Min. Sound Output at 10cm (dB) | 70 |
| Rated Voltage (Vp-p) | 1.5V |
| Resonance Frequency | 400+/-100 Hz |
| Operating Voltage (Vp-p) | 1.3~3 |
| Max. Current Consumption (mA) | 20 |
| Operating Temperature | -20~+60 |
| Storage Temperature | -30~+70 |
| Weight | 0.8g |

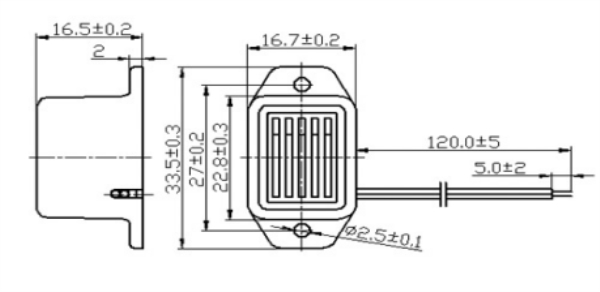

Appearance Drawing
