3v 10v Passive Piezo Transducer for Remote Control

  • MSPT22C30P12.5V30
  • 22.0 * 7.0mm
  • 5Vp-p
  • 3000±500HZ
  • ≥85dB@10cm
  • ≤5mA
  • 1~30Vp-p
  • MSPT22C30P12.5V30.pdf
Availability:

Specification

Model No

MSPT22C30P12.5V30

Resonance Frequency (KHz)

2.7

Operating Voltage1~30V

Current Consumption (mA)

≤5 at 2.7KHz Square Wave 5Vp-p

Sound Output at 10cm (dB)

≥85 at 2.7KHz Square Wave 5Vp-p

Resonance Frequency (KHz)

2.7

Capacitance at 120Hz

30±30%nF

Operating Temperature-20~+70℃
Storage Temperature-30~+80℃
Weight2.7g

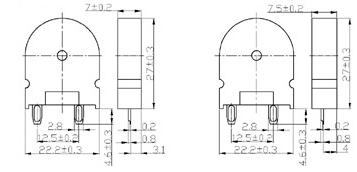

Appearance Drawing
