22mm*4mm external drive piezo transducer

  • MSPT22B
  • 21.7 * 4.0mm
  • 12Vp-p
  • 3000±500HZ
  • ≥85dB@10cm
  • ≤4mA
  • 3~30Vp-p
  • MSPT22B.pdf

Specification

TYPE (UNIT)MSPT22B
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)3~30
Resonant Frequency (Hz)3000±500
Max. Current Consumption (mA)4
Capacitance at 1,000HZ (pF)24000±30%
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70
Weight (g)1

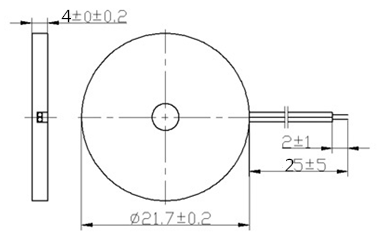

Appearance Drawing

22B
