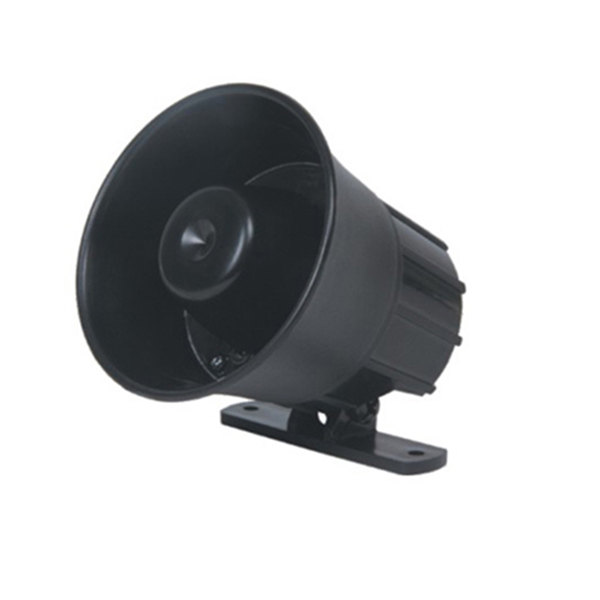

Home Security System Burglar Alarm Siren
Model:
ASP69A
Dimension:
69mm
Voltage:
DC 12V/24V
Sound:
1 OR 6 TONE
SPL(1Meter):
105±3/110±3dB
Rated Power:
10/15W
Frequency:
2.6kHz
Current:
150mA Max
Availability:
Inquire
Add to Basket
Specification
Appearance Drawing
Specification
POWER
10W/15W
FREQ
2.6K
VOLTAGE
DC 6-15V/24V
CURRENT
150mA
SOUND
1 OR 6 TONE
dB/M
105/110
MATERIAL
ABS
COLOR
BLACK / WHITE
PACKING
200PCS/0.03CBM

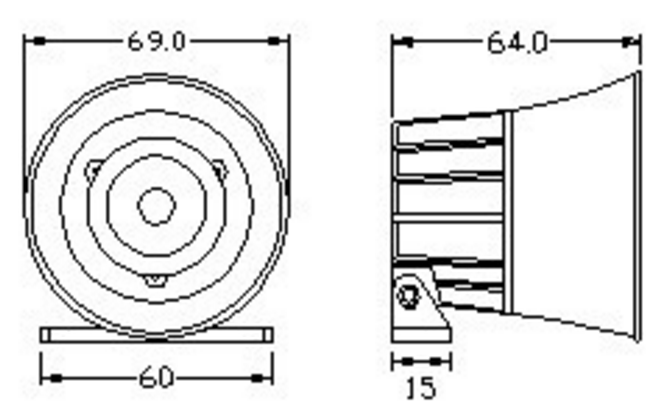

Appearance Drawing
