13mm Driver Unit 8 Ohm 0.5w Cable Speaker Mini Cellphone Speaker
13mm Driver Unit 8 Ohm 0.5w Cable Speaker Mini Cellphone Speaker
Share to:

13mm Driver Unit 8 Ohm 0.5w Cable Speaker Mini Cellphone Speaker

  • MNS13H041R8MW50
  • 8ohm±15%Ω
  • 0.5w
  • 86±3dB/W/M
  • Fo-20kHz
Inquire Add to Basket

Specification

Model No.MNS13H041R8MW50
Nominal Power: 0.5w
Maximum Power: 0.8w
Impedance: 8ohm±15%Ω
Fo: 1300± 20%HZ
Response: Fo-20kHz
S.P.L:  86±3dB/W/M

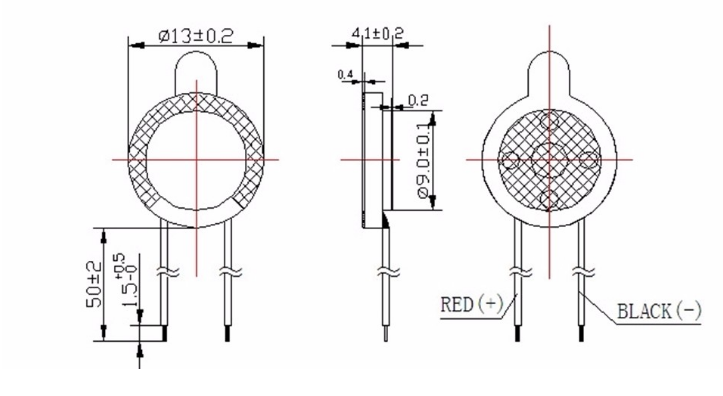

Appearance Drawing

Mylar Speaker
