Home
/
SPEAKER
/
Mylar Speaker
/
4 ohm mylar speaker 0.25watt multimedia round speaker 36mm
Product Categories
Piezo Buzzer
Active Type
0-20mm
21-29mm
30-39mm
40-49mm
≥50mm
Passive Type
0-20mm
21-29mm
30-39mm
40-49mm
≥50mm
SMD Buzzer
0-20mm
BUZZER
Magnetic Buzzer
Magnetic Transducer
Mechanical Buzzer
Microphone
Receiver
Piezo Element
SIREN
Piezo Siren
Electronic Siren
Battery Back-Up Siren
Strobe Light
SPEAKER
Miniature Speaker
Mylar Speaker
Earphone Speaker
Mobile Phone Speaker
Waterproof Speaker
Ultrasonic Speaker
ULTRASONIC SENSOR
Open Type Ultrasonic Sensor
Waterproof Ultrasonic Sensor
300KHz ultrasonic sensor
High Frequency Ultrasonic Sensor
Car Parking Sensor
Ultrasonic Module
Flow Sensor
Level Sensor
Ultrasonic Atomizer
Share to:
4 ohm mylar speaker 0.25watt multimedia round speaker 36mm
Model:
MNY36N08AB
Impedance:
ohm±15%Ω
Rated Power:
0.25w
SPL:
91±3dB/W/M
Frequency Range:
Fo-6kHz
Using Method:
NdFeB
Availability:
Inquire
Add to Basket
Specification
Appearance Drawing
Specification
Model No.
MNY36N08AB
Cone Material:
Mylar
Nominal Power:
0.25w
Maximum Power:
0.5w
Impedance:
ohm±15%Ω
Fo:
600hz
Response:
Fo-6kHz
S.P.L:
91±3dB/W/M
Magnet Size:
NdFeB

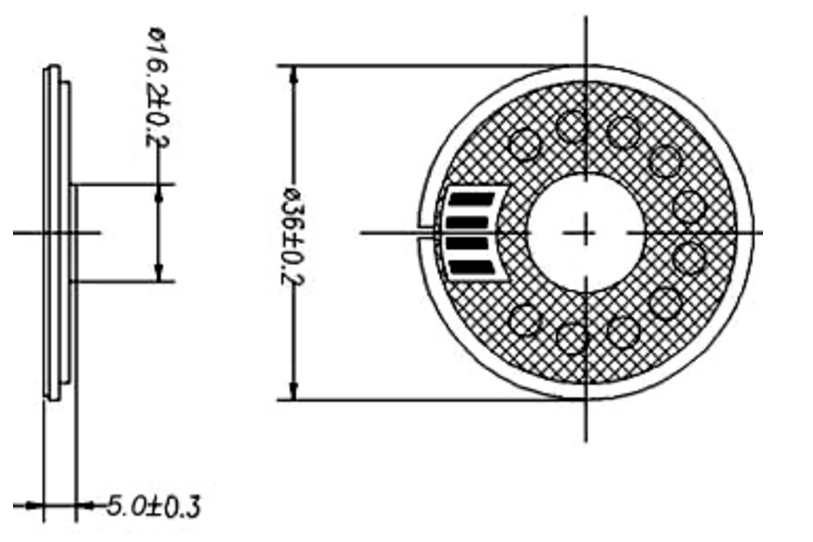

Appearance Drawing
