400khz high frequency ultrasonic printer sensor

  • MSW-A11400H10TR
  • 11 * 7MM
  • Enclosed
  • 7°±2° (-3dB)
  • 400.0±16.0KHz
  • Dual use

Product Description

Part Number

MSW-A11400H10TR

Construction

High-frequency

Using method

Dual use

Center frequency

400.0±16.0KHz

Bandwidth

30.0KHz

Echo Sensitivity

0dB = 20Cp-p,50 Bursts, 10 cm

-75dB min

Min. Parallel Resistance

600Ω±30

Capacitance

180Pf±20

Max.Input Voltage(Pulse)

300Vp-p

Directivity (-3dB)

7°±2°

Distance of Detection

50~300mm

Protection Class

IP65

Material

Aluminum

Operating temperature

-40℃~+80℃

Storage Temperature

-40℃~+85℃

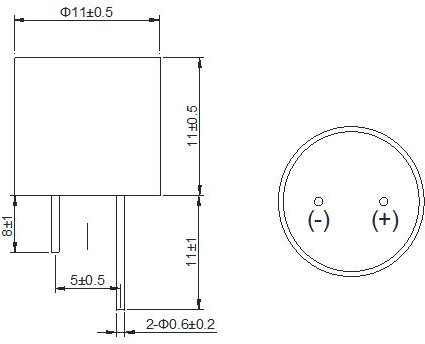

Appearance drawing
