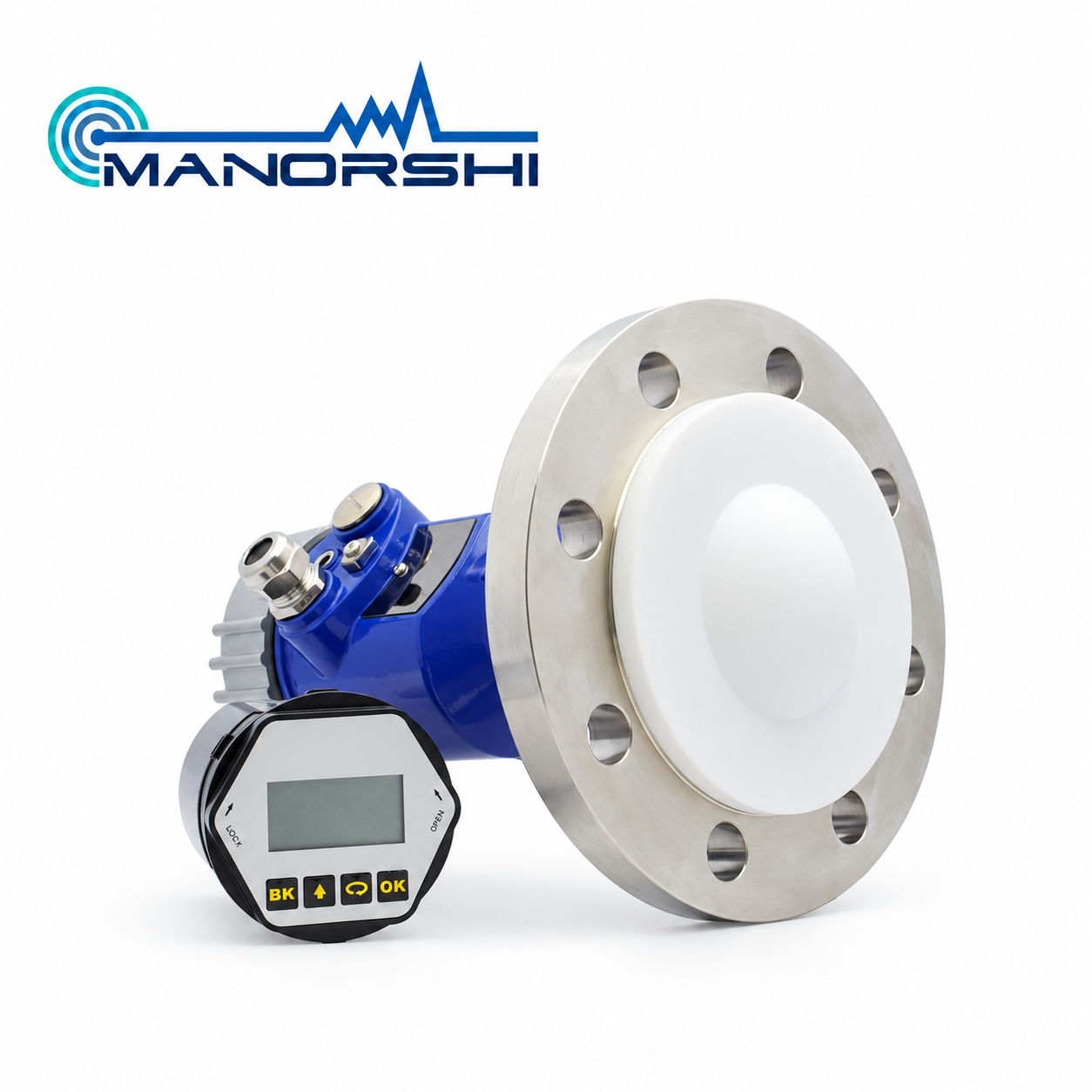

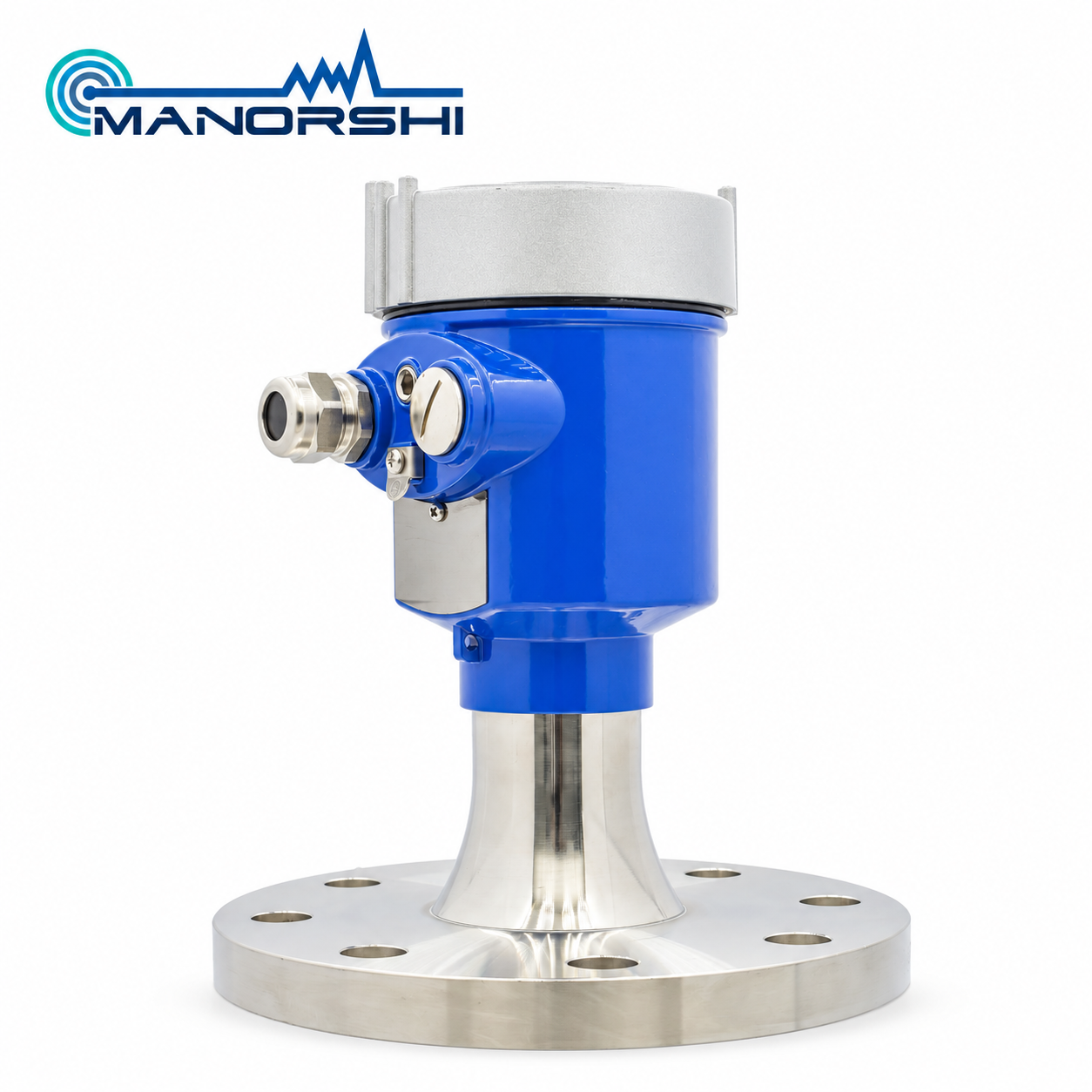

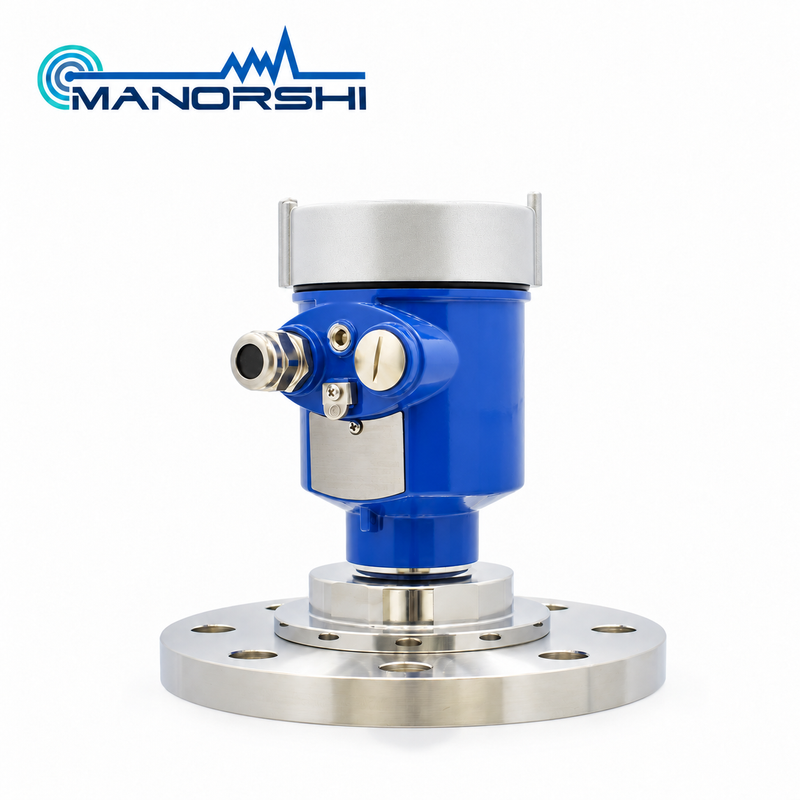

MNSLL-H103 80GHz Radar Liquid Level Sensor
The MANORSHI MNSLL-H103 is an 80GHz radar level sensor designed for liquid level and solid material height measurement.
The product uses radar level measurement technology and provides a specified accuracy of 2 mm. A standard 4-20mA output allows the sensor to transmit measurement information to compatible industrial monitoring and control equipment.
The product page specifically identifies corrosive liquid tank measurement as an application of the MNSLL-H103.
Key Features
80GHz radar level measurement technology
Suitable for liquid level and solid height measurement
High measurement accuracy
Standard 4-20mA industrial output
Wide operating temperature adaptability
Technical Specifications
Parameter | Specification |
Product Model | MNSLL-H103 |
Brand | MANORSHI |
Product Type | Radar Liquid Level Sensor |
Radar Frequency | 80GHz |
Measurement Principle | Radar Level Measurement |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Measurement Application | Liquid Level / Solid Height |
Mounting Type | Flanged or Threaded |
Color | Yellow + Blue |
Typical Applications
Corrosive liquid tank level measurement
Industrial liquid level monitoring
Storage tank level measurement
Solid material height measurement
Industrial process level monitoring
Tank level control systems
Why Choose the MNSLL-H103?
The MANORSHI MNSLL-H103 combines 80GHz radar level measurement, 2 mm accuracy and standard 4-20mA output.
Its wide operating temperature range and flexible flanged or threaded mounting provide a practical solution for liquid level, solid height and compatible corrosive liquid tank applications.
Frequently Asked Questions
What is the MNSLL-H103?
The MNSLL-H103 is an 80GHz radar level sensor designed for liquid level and solid material height measurement.
What radar frequency does it use?
The product title specifies 80GHz radar technology.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The MNSLL-H103 provides a 4-20mA analog output.
What power supply does it require?
The specified power supply is 12–24VDC.
What is the operating temperature range?
The specified operating temperature range is -40°C to +130°C.
Can it measure corrosive liquids?
The product title specifically identifies the sensor for measuring corrosive liquid height in tanks.
Can it measure solid materials?
Yes. The product attributes list solid height as a supported measurement application.
How can the sensor be installed?
The product supports flanged or threaded mounting.
What is the measuring range?
The current Alibaba page does not provide a numerical measuring range, so this parameter should not be added until confirmed.
Does the page specify the protection level?
No. The current page does not provide an IP protection rating.
Does the page specify the housing or wetted material?
No. The current product page does not provide a material specification, so the material should be confirmed separately before using the sensor with a specific corrosive liquid.
