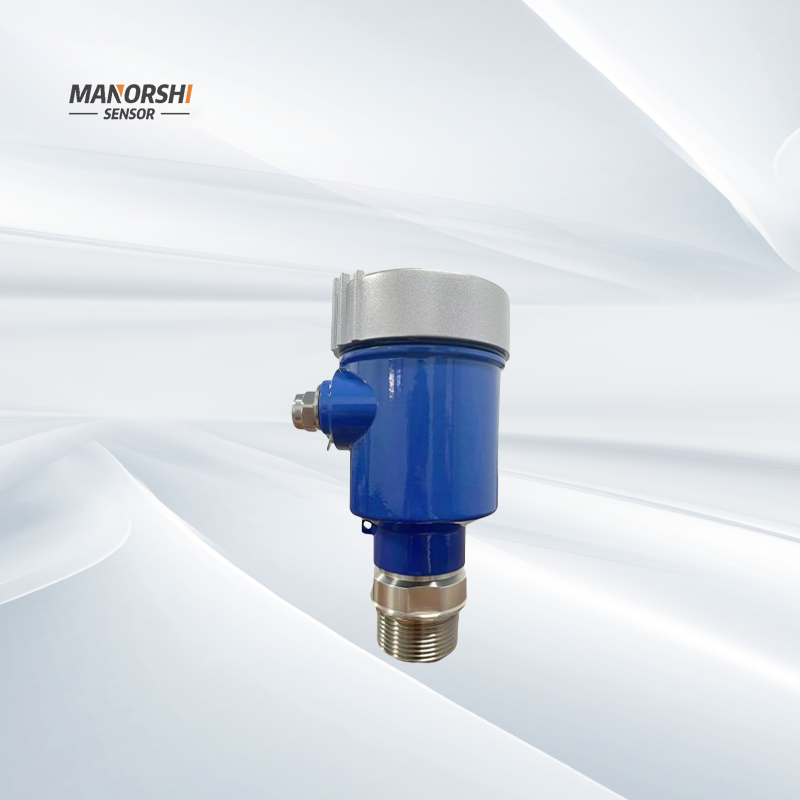

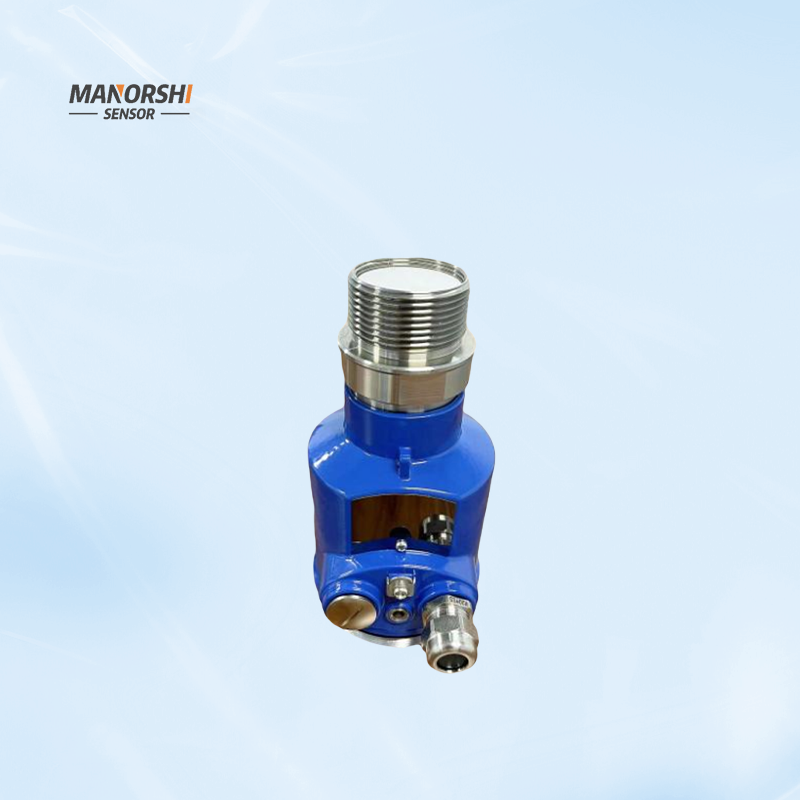

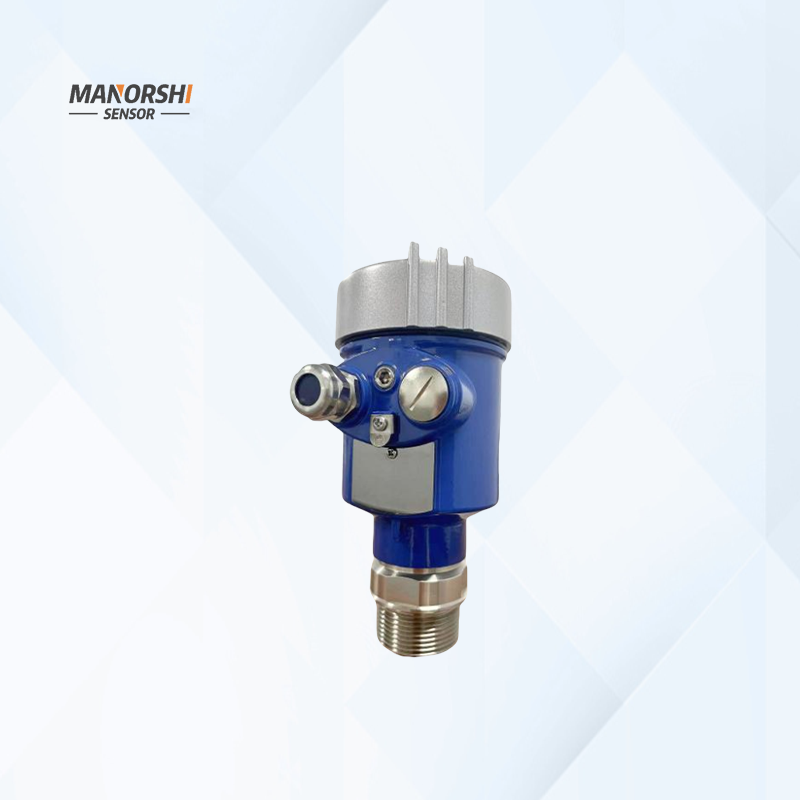

MNSLL-H101 80GHz Silo Radar Level Sensor
The MANORSHI MNSLL-H101 is a radar level sensor designed for silo level monitoring, solid material height measurement and liquid level measurement.
Using radar wave level measurement technology, the sensor provides non-contact measurement over a range of 0.05 to 120 meters with a specified accuracy of 2 mm.
The MNSLL-H101 provides a standard 4-20mA analog output and operates from a 12–24VDC power supply, allowing it to be integrated with compatible industrial monitoring and control systems.
Key Features
Non-contact radar wave level measurement
Suitable for silo and solid material level monitoring
Long-distance level measurement capability
High measurement accuracy
Standard industrial analog output
Technical Specifications
Parameter | Specification |
Product Model | MNSLL-H101 |
Brand | MANORSHI |
Product Type | Radar Level Sensor |
Radar Frequency | 80GHz |
Measurement Principle | Radar Wave Level Measurement |
Measuring Range | 0.05–120 m |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Measurement Application | Solid Height / Liquid Level |
Mounting Type | Flange or Threaded |
Color | Yellow + Blue |
Typical Applications
Silo level measurement
Solid material height monitoring
Bulk material storage monitoring
Industrial tank level measurement
Liquid level monitoring
Storage vessel level measurement
Industrial process level monitoring
Why Choose the MNSLL-H101?
The MANORSHI MNSLL-H101 combines radar wave level measurement, a long 0.05–120 m measuring range and 2 mm accuracy.
Its 4-20mA output, 12–24VDC power supply, wide operating temperature range and flexible flange or threaded installation make it suitable for silo, solid material and liquid level monitoring systems.
Frequently Asked Questions
What is the MNSLL-H101?
The MNSLL-H101 is a radar level sensor designed for silo, solid material height and liquid level measurement.
Is the MNSLL-H101 an 80GHz radar sensor?
The Alibaba product title identifies the MNSLL-H101 as an 80GHz silo radar level sensor.
What is the measuring range?
The specified measuring range is 0.05–120 m.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The MNSLL-H101 provides a standard 4-20mA analog output.
What power supply does it require?
The specified power supply is 12–24VDC.
What is the operating temperature range?
The specified operating temperature range is -40°C to +130°C.
Can it measure solid materials?
Yes. The product attributes explicitly list solid height measurement.
Can it measure liquid level?
Yes. Liquid level is also listed as a supported application.
How can the sensor be installed?
The MNSLL-H101 supports flange or threaded mounting.
Does the page specify an IP protection level?
No. The current Alibaba page does not provide an IP rating.
Does the page specify the sensor material?
No. The current page does not provide a confirmed material specification, so material should not be added until confirmed.
