MSET16A
16 * 14mm
6Vp-p
2048±500Hz
≥85dB@10cm
≤40mA
4~8Vp-p
Specification
| TYPE (UNIT) | MSET16A20P01 | MSET16A20P06 | MSET16A20P12 |
| Min. Sound Output at 10cm (dB) | 80 | 85 | 85 |
| Rated Voltage (Vp-p) | 1.5 | 6 | 12 |
| Operating Voltage (Vp-p) | 1~3 | 4~8 | 9~15 |
| Resonant Frequency (Hz) | 2048 | 2048 | 2048 |
| Max. Current Consumption (mA) | 18 | 40 | 40 |
| Coil Resistance (ohms) | 27+/-3 | 50+/-5 | 115+/-12 |
| Coil Impedance (ohms) | 80 | 110 | 200 |
| Operating Temperature (C) | -20~+70 | -20~+70 | -20~+70 |
| Storage Temperature (C) | -30~+80 | -30~+80 | -30~+80 |
| Weight (g) | 7 | 7 | 7 |

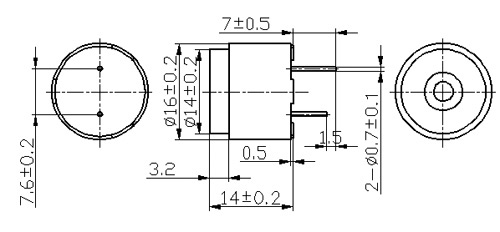

Appearance Drawing
