1.5V 3V 5V 2371Hz 9650 Lateral Sound Electromagnetic Patch Buzzer

  • MSET10A
  • 9.6 *5mm
  • 5Vo-p
  • 2731±500Hz
  • ≥85dB@10cm
  • ≤80mA
  • 4~7Vp-p

Specification

TYPE (UNIT)MSET10A
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vo-p)5
Operating Voltage (Vo-p)4~7
Resonant Frequency (Hz)2731
Max. Current Consumption (mA)80
Coil Resistance (ohms)40±4
Operating Temperature (C)-20~+70
Storage Temperature (C)-30~+80

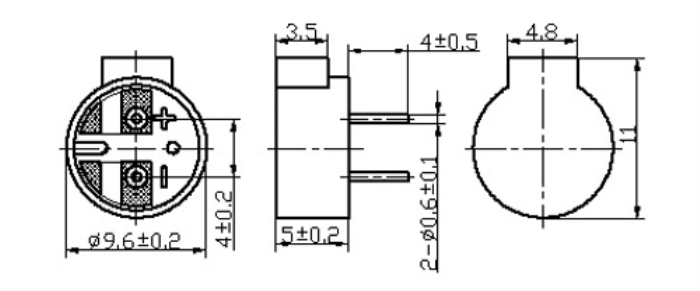

Appearance Drawing
