1.5V Small Magnetic Buzzer Electric Bell Warning Transducer

  • MSET10C
  • 9.6 *5mm
  • 1.5Vp-p
  • 2730±500Hz
  • ≥86dB@10cm
  • ≤80mA
  • 1~2Vp-p

Specification

Type MSET10C
Min. Sound Output at 10cm (dB)86
Rated Voltage (Vp-p) 1.5V
Resonance Frequency2730Hz
Operating Voltage (Vp-p)1-2V
Max. Current Consumption (mA)80
Coil Resistance (ohms) 15
Coil Impedance (ohms) 15
Operating Temperature-20~+70
Storage Temperature-30~+80
Weight0.8g

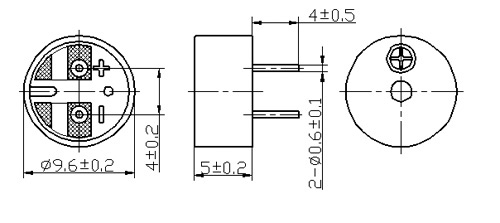

Appearance Drawing
