3.6v 83db 2730hz Small Smd Magnetic Buzzer

  • SM09ET03A
  • 9.0 * 2.5mm
  • 3.6Vp-p
  • 2730±500Hz
  • ≥83dB@10cm
  • ≤110mA
  • 2.5-4.5Vp-p

Specification

NO.ItemUnitSpecificationCondition
1Rated VoltageVp-p3.6
2Operating VoltVp-p2.5-4.50V
3Mean CurrentmAMax.110Applying rated voltage 2730HZ square wave 1/2 duty
4Coil ResistanceΩ16.0±3.0
5Sound OutputdBA83/10cmDistance at 10cm(A-weight free air), Applying rated voltage 2730HZ,square wave,1/2duty
6Rated FrequencyHz2730
7Operating Temp-30-+70
8Storage Temp-40-+85
9Dimensionmmφ9.0×H2.5See attached drawing.
10Weightgram0.5
11Material
LCP(Black)
12Terminal
SMD typeSee attached drawing
13Storage lifemonth66 months preservation at room temp(25±3℃),Humidity40%
14Environmental
RoHS
Protection Regulation

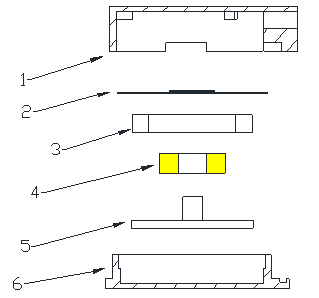

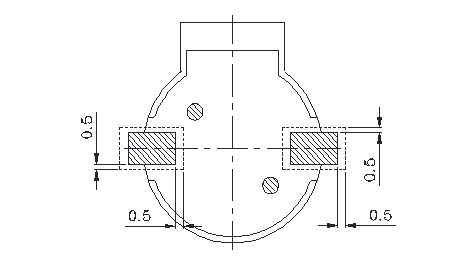

Appearance Drawing
