9.0 * 3.2mm 5V 85dB ac SMD buzzer with side sound hole

  • SM09ET03B
  • 9.0 * 3.2 mm
  • 5 Vp-p
  • 2731±500Hz
  • ≥85dB@10cm
  • ≤80mA
  • 3 - 8 Vp-p

Product Description

No.

Item

Unit

Specification

Condition

1

Oscillation Frequency

Hz

2731

Vo-p=1/2duty , square wave

2

Operating Voltage

Vp-p

3 ~8


3

Rated Voltage

Vp-p

5


4

Current Consumption

mA

MAX. 80

at Rated Voltage

5

Sound Pressure Level

dB

MIN. 85

at 10cm at Rated Voltage

6

Coil Resistance

Ω

30±5


7

Operating Temperature

-30 ~ +70


8

Storage Temperature

-40 ~ +85


9

Dimension

mm

Φ9.0x H3.2

See appearance drawing

10

Weight (MAX)

gram

0.8


11

Housing Material


LCP( Black )


12

Leading Pin


 Tin Plated Brass(Sn)

See appearance drawing

13

Environmental

Protection Regulation


 RoHS

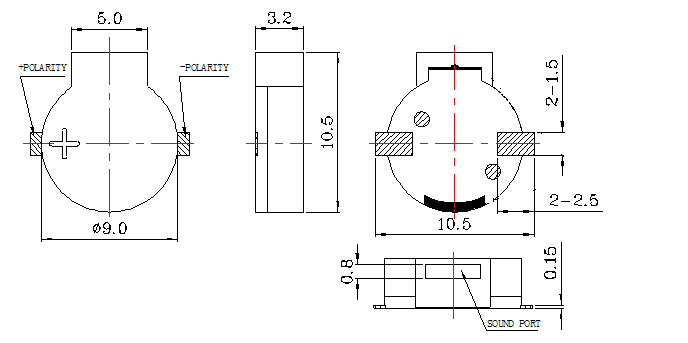

Appearance Drawing

09ET03B
