Home / BUZZER / Microphone / 4 * 1.5mm Electret Condenser Microphone MIC Capsule 2 Leads
Share to:

4 * 1.5mm Electret Condenser Microphone MIC Capsule 2 Leads

  • ME40H15-W
  • 4*1.5mm
  • > 42dB
  • 115dB
  • -36+2dB
  • 20-16000Hz
  • 1~10V

Product Description

Directional Characteristic

Omni-Directional

Sensitivity Range

-36+2dB at 1KHZ (0 dB=1 V/uba) RL=2.2 KΩ VCC=2.0 V

Impedance

2.2 KΩ+30% at 1KHZ  (RL=2.2 KΩ)

Frequency Response

As Fig.3

S/N ratio

More than 42 dB

Max Input Sound Level

115 dB  S. P. L

Operating Voltage

3.0V  (1.1~10V)

Circuit Current

400μA  max  (VCC=2.0V)

Terminal Locations

As per Fig.1

Electrical Circuit

As per Fig.2

Capacitor

33pf

Storage Temperature

-20℃~+60℃

Operating Temperature

-10℃~+55℃

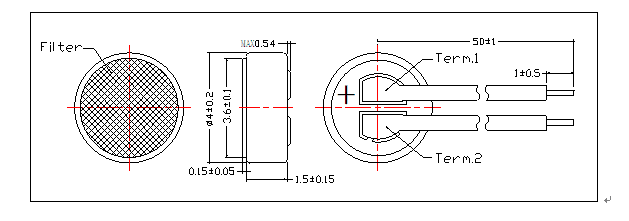

Appearance drawing
