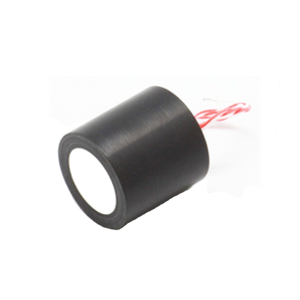

200khz High Frequency Ultrasonic Range Finder Sensor

  • MSW-A12200H19TR--W
  • 20*12MM
  • Enclosed
  • 30°±2° (-6dB)
  • 200.0±8.0KHz
  • Dual use

Product Description

Part Number

MSW-A12200H19TR--W

Construction

High-frequency

Using Method

Dual use

Center frequency

200.0±8.0KHz

Bandwidth

20.0Khz

Echo Sensitivity

-80dB min

Min.Parallel Resistance

 600Ω±30%

Capacitance

400±20%pF

Typical Sensing Range

0.1~1

Directivity deg

30°±2°(-6dB)

Max.Input Voltage

500Vp-p

Protection Class

IP68

Operating Temperature

-40-+80℃

Storage Temperature

-40-+85℃

Housing Material

Stainless steel
