175kHz high frequency Ultrasonic Transducers with MSW-A

  • MSW-A27175H13TR--W

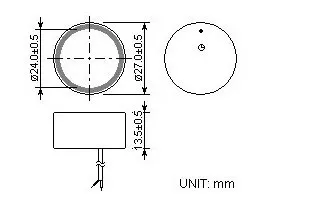

  • 27*3.5MM
  • Enclosed
  • 7°±2°(-6dB)
  • 175.0±5.0KHz
  • Dual use

Product Description

Part Number

MSW-A27175H13TR--W

Construction

High-frequency

Using Method

Dual use

Center frequency

175.0±5.0KHz

Bandwidth

14.0Khz

Echo Sensitivity

-45dB min

Min.Parallel Resistance

 250Ω±30%

Capacitance

400±20%pF

Typical Sensing Range

0.1~2m

Directivity deg

7°±2°(-6dB)

Max.Input Voltage

500Vp-p

Protection Class

IP65

Operating Temperature

-20-+80℃

Storage Temperature

-35-+85℃

Housing Material

Aluminum
