10mm 40kHz Ultrasonic Sensor for Measuring Distance

  • MSO-A1040H07T
  • 10*7mm
  • Open Type
  • 70°±15° (-6dB)
  • 40±1.0KHz
  • ≥110dB
  • Transmitter
  • 0.02～12m
  • MSO-A1040H07T.pdf
Inquire Add to Basket

Specification

ItemTransmitter
Center frequency40.0±1.0KHz
SPL≥110dB
Sensitivity-------
Directivity60°
Capacitance2300±30%pF
Housing materialAluminum
Measure distance0.02～12m
Driving Voltage≤40Vrms
Operating Temperature-20～+70℃
Storage Temperature-40～+85℃

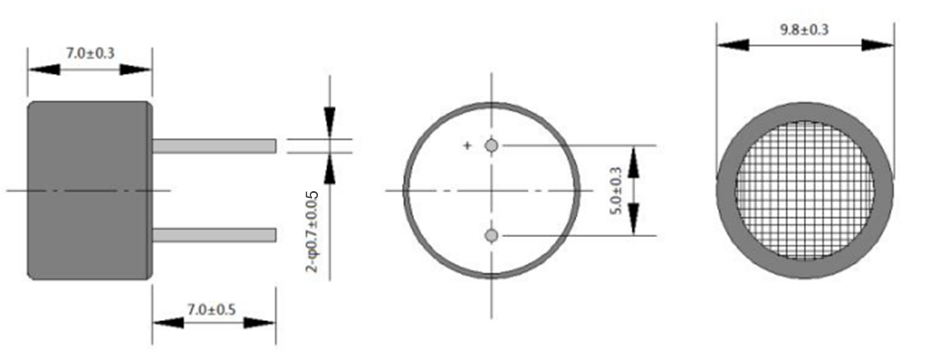

Appearance Drawing

Open Type
