Array Small Water Level Controller Ultrasonic parking sensor

  • US-015
  • 45*20mm
  • Open Type
  • ≤15°
  • Transmitter&Receiver
  • US-015.pdf

Specification

Electrical parameter

US-015 ultrasonic ranging module

Operating Voltage

DC 5V

Operating Current

2.2mA

Operating temperature

0~+70 ℃

Output Mode

GPIO

Sensing Angle

Less than 15 degrees

Detection Range

2cm-400cm

Detection accuracy

 0.1cm+1%

Resolution

Higher than 1 mm (up to 0.5 mm)

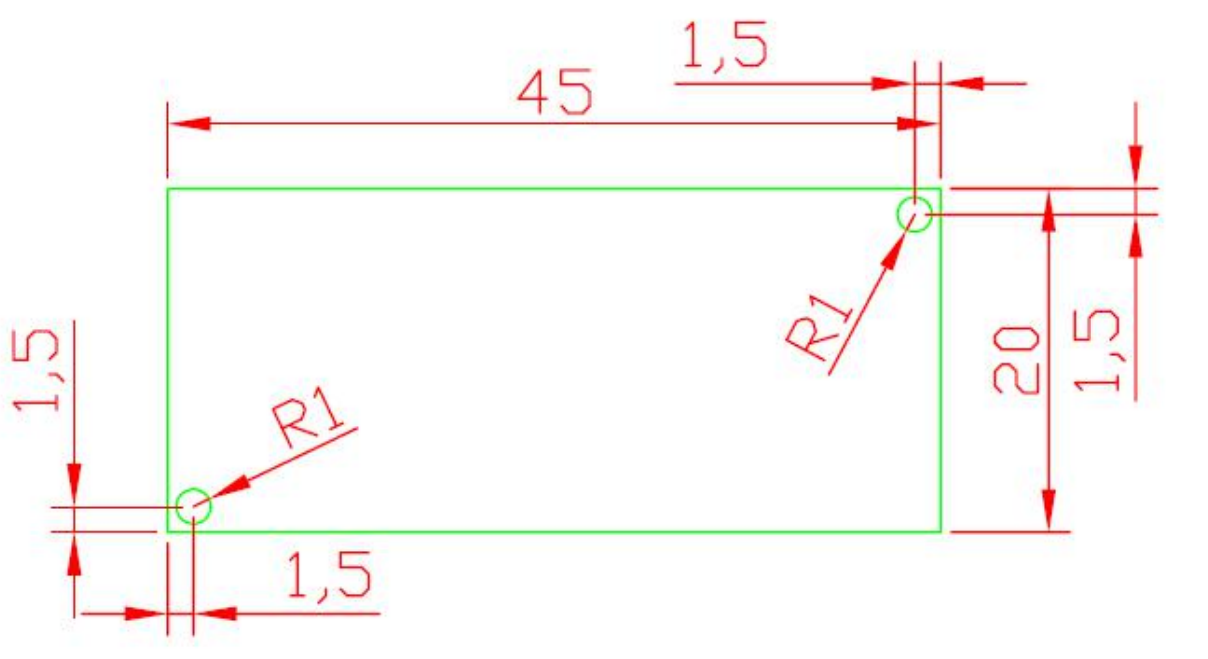

Appearance Drawing

QQ图片20211013163008
