Home / ULTRASONIC SENSOR / Open Type / The New Tap 20khz Ultrasonic Jammers Sensor
Share to:

The New Tap 20khz Ultrasonic Jammers Sensor

  • MSO-A1620H12T
  • 16*12mm
  • Open Type
  • 60°±15° (-6dB)
  • 20±1.0KHz
  • ≥110dB
  • Transmitter
  • 0.2~15m

Specification

Item

Transmitter

Center frequency

20.0±1.0KHz

SPL

≥110dB

Sensitivity

-------

Directivity

60°±15°

Capacitance

2900±30%pF

Housing material

Plastic

Measure distance

0.215m

Driving Voltage

≤30Vrms

Operating Temperature

-20+70

Storage Temperature

-35+85

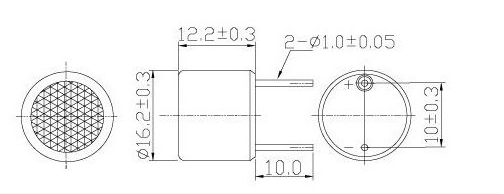

Appearance Drawing
