NL-YND-FL1.2
MANORSHI
NL-YND-FL1.2
79*24*22
DC 6.5~12V
Product Description
Range of Concentration | 21%-95.6% |
Resolution | 0.1% |
Accuracy | ±1.5%FS @ (5 - 55) ℃ |
Range of Flow | 0-10L/min |
Resolution | 0.1L/min |
Accuracy | ±0.2L/min or 5% reading, which is bigger@(25±2) ℃ |
Sample gas requirements | Arefaction(No condensation);Dust filtration(<1um) |
The spacing time of UART data | 500ms |
Warm-up Time | Sensor works as soon as power on; 10 seconds to within specified accuracy; |
Digital Output | 9600bps UART 5V / 3.3V ( TTL Level) |
LED Output | GREEN ：Concentration >82% YELOW: 82%>Concentration>50% RED:50%>Concentration (Settings are adjustable according to customer’s requirement) |
Direction | follow the arrow |
Working temperature | 5~55℃ |
Storage temperature | -5~65℃ |
Working humidity | 5~85%RH |
Maximum Pressure | 150 kPa |
Power Supply | DC 6.5-12V，50mA |
Dimensions | 79mm x 24mm x 22mm ( L x W x H) |
Weight | 25g |

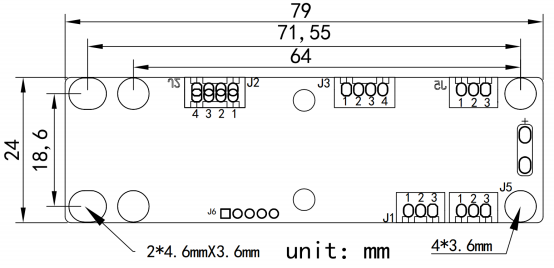

Appearance Drawing
