9V 85dB 2048hz AC Piezoelectric Buzzer

  • MSPT17E
  • 17.1 * 9.0mm
  • 9Vp-p
  • 2048±500HZ
  • ≥85dB@10cm
  • ≤2mA
  • 3~20Vp-p

Specification

TYPE (UNIT)MSPT17E30P09
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vp-p)9
Operating Voltage (Vp-p)3~20
Resonant Frequency (Hz)2048+/-500
Max. Current Consumption (mA)2
Capacitance at 1,000HZ (pF)28000+/-30%
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70
Weight (g)1.1

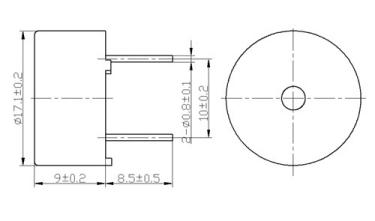

Appearance Drawing
