Home / Passive Type / 0-20mm / 9V 85dB Passive Electronic Piezoelectric Pin Piezo Buzzer
Share to:

9V 85dB Passive Electronic Piezoelectric Pin Piezo Buzzer

  • MSPT17C
  • 16.8 * 7.7mm
  • 9Vp-p
  • 4000±500HZ
  • ≥85dB@10cm
  • ≤2mA
  • 1~30Vp-p

Specification

TYPE (UNIT)MSPT17C40P09
Min. Sound Output at 10cm (dB)85
Rated Voltage (Vp-p)9
Operating Voltage (Vp-p)1~30
Resonant Frequency (Hz)4000+/-500
Max. Current Consumption (mA)2
Capacitance at 1,000HZ (pF)14000+/-30%
Operating Temperature (C)-20~+70
Storage Temperature (C)-30~+80
Weight (g)1.3

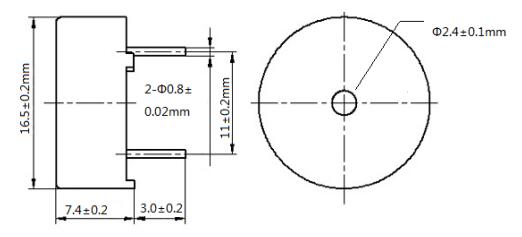

Appearance Drawing
