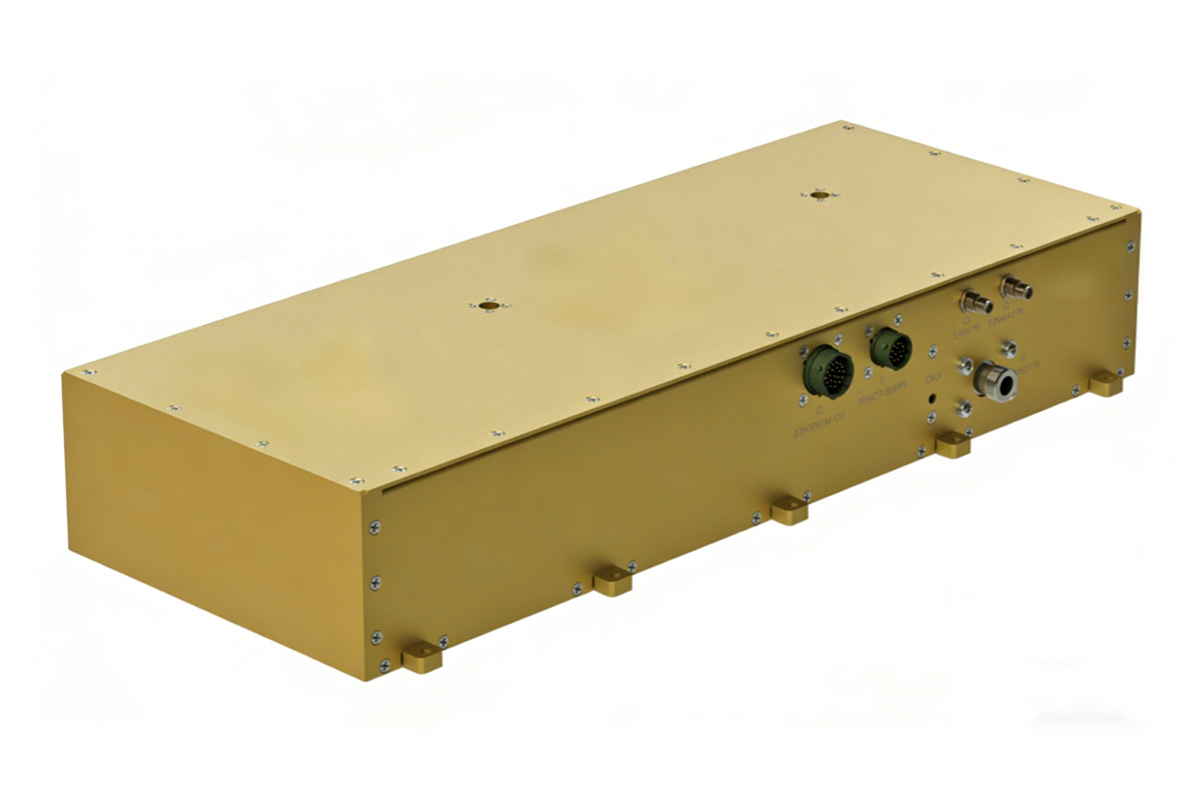

The MNS-MPM1kW-18G pulsed microwave power module (MPM) operates across the 6 to 18 GHz frequency band, delivering 1 kW of peak output power at a maximum 5% duty cycle.
Power amplification is achieved via a periodic permanent magnet (PPM)-focused, conduction-cooled mini traveling wave tube (TWT), paired with a solid-state driver amplifier to provide the required RF gain. The high-voltage power supply (HVPS) section adopts a modular architecture and low-noise power supply topology, integrating high-efficiency solid-state power conversion circuits. A highly stable solid-state modulator is also integrated to control the TWT grid for pulse operation. This conduction-cooled MPM operates with 270 VDC prime power, and is primarily designed for high-performance electronic warfare (EW) systems.
Electrical
Frequency Range: 6 to 18 GHz
Output Power Peak: 1000 W, min.
Duty Cycle: 5%, max.
PRF: 40 kHz, max.
Pulse Width: 1 to 50 μsec.
Gain at Rated Power: 60 dB
RF Drive for Rated Power: 0 dBm to +5 dBm max.
Harmonics: -1.5 dBc, max.
Spurious: -45 dBc typical
RF Rise and Fall Times: 25 ns
Input VSWR: 2.0:1 (50 Ω Impedance)
Output VSWR: 2.5:1, max.
Load VSWR: 1.5:1 for specification compliance
Input Pulse (PRF): TTL
Control: Discreet
Delay, PRF to RF Pulse: 400 ns max. (leading edges, 50% points)
Prime Power: 270 VDC
Protection: Helix Over-Current, Cathode Over-Current
Over-Voltage, Over-Temperature
Excessive PRF and Pulse Width or Duty Cycle
Mechanical
Connectors:
·RF Input: SMA (F)
·RF Output: TNC (F)
Pulse Input: Differential TTL
Prime Power: MS3112E14-SP
Control: DB-15
Size: 7" (W) x 3" (H) x 18" (L)
Weight: 18 lbs
Environmental
Vibration: 10 to 1000 Hz, 0.02g2/Hz
Operating Temperature: -40° C to +70° C (Base Plate)
Operating Altitude: Up to 50,000 ft
Humidity: Up to 95% RH, no condensation
Options
·Custom Frequency Bands
·Different prime power
·Integrated package with various options
