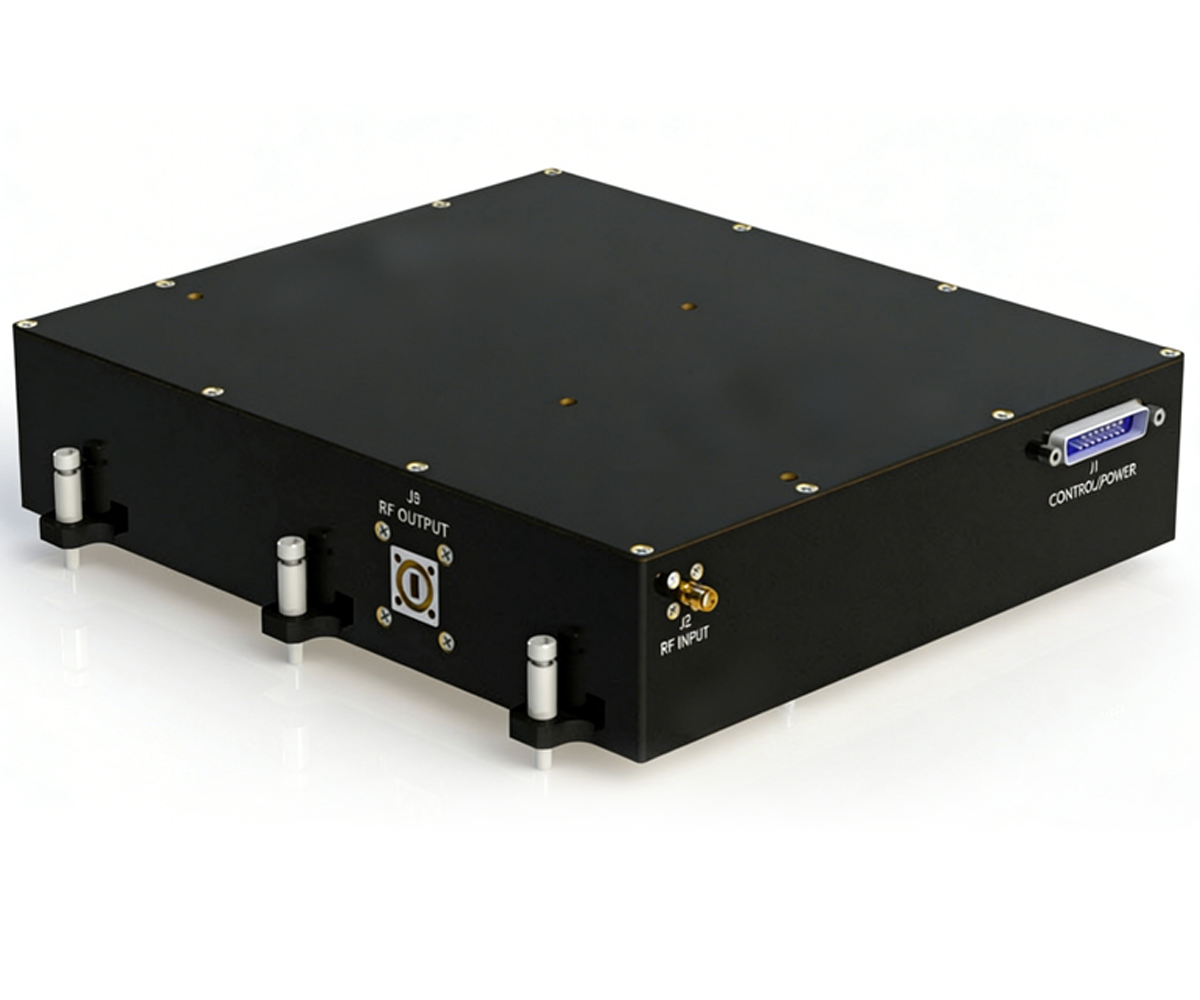

Microwave Power Module-MNS-MPM80W-45.5G80W operates in the 43.5–45.5 GHz millimeter‑wave frequency band with a continuous‑wave (CW) output power of 80 W. Its RF chain adopts a classic architecture of solid‑state amplifier plus vacuum power booster. The power supply system adopts a patented low‑noise and high‑efficiency design. Featuring compact overall structure and conduction cooling, it is customized for extreme military environments with outstanding reliability, and is mainly applied in high‑end scenarios such as military data links.
Electrical
Frequency Range: 43.5 to 45.5 GHz
Output Power: 80 Watts CW min.
Gain at Rated Power: 49 dB min.
Gain Variation: 2.5 dB over any 1GHz Band
Gain Stability: ±0.25 dB over 24 hours
Harmonics: -10 dBc max.
Noise Power: -70 dBw/4KHz max. Transmit and Recieve Bands
Spurious: -50 dBc max.
Phase Noise: 12 dB below IESS phase noise profile
Input VSWR: 2.0:1 max.
Output VSWR: 2.5:1 max.
Load VSWR: 1.5:1 max. for full specification compliance
Prime Power Input: 270 VDC
Power Consumption: 900 W max.
TWTA Protection: Helix Over-Current, Cathode Over-Voltage, Over-Temperature
Status/Indication: Equipment status, faults
Interface Control: Discrete logic
Modulation Control: Differential or TTL
Mechanical
Connectors:
·RF Input: Type-K/2.9mm, (F)
·RF Output: WR-22 Waveguide
·Power: CBD17W2M2000
·Control: TBD
Dimensions: 11" (L) x 9.38" (W) x 2.38" (H)
Weight: 12 lbs.
Cooling: Conduction
Environmental
Vibration: 10 to 1000 Hz, 0.02g²/Hz
Shock: 15 g, 11 msec, Half Saw Tooth
Operating Temperature: -40° C to +75° C (Base Plate Temperature)
Storage Temperature: -54° C to +85° C
Operating Altitude: Up to 50,000 feet
Humidity: Up to 95% RH Non-Condensing
Options
·Ethernet interface (new outline)
·Serial interface (new outline)
·Prime power inpu
