MS-T/R14404L
Enclosed
X:110°±15° Y:60°±15°
40±1.5KHz
≥100dB (30cm/10Vrms Sine Wave)
≥-82dB/v/μ bar(0dB=V/Pa)
Dual use
| Availability: | |
|---|---|
Specification
| Center frequency | 40±1.5KHz |
| Transmitting Sound Pressurs Level(dB) | ≥100dB (30cm/10Vrms Sine Wave) |
| Receive Sensitive(dB) | ≥-82dB/v/μ bar(0dB=V/Pa) |
| Function | Transmitter/Receive |
| Capacitance | 2000±20% at 1.0KHz |
| Input Voltage | 150V |
| Material | Plastic |
| Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Terminal | Connector |
| Weight(g) | 38.0±3.0 |

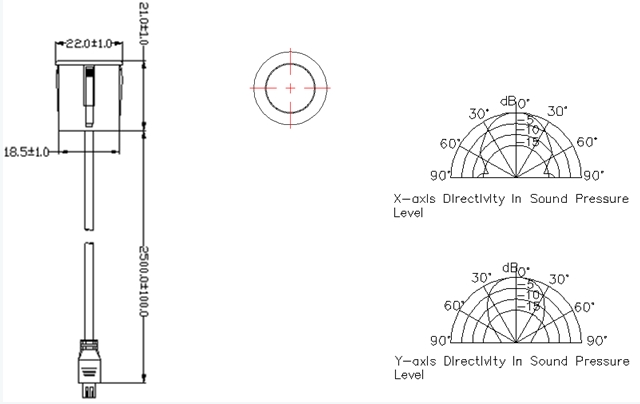

Appearance Drawing
