MSPT22C
22.0 * 7.0mm
5Vp-p
2700±500HZ
≥85dB@10cm
≤5mA
3~30Vp-p
Availability: | |
---|---|
Specification
TYPE (UNIT) | MSPT22C |
Min. Sound Output at 10cm (dB) | 85 |
Rated Voltage (Vp-p) | 5 |
Operating Voltage (Vp-p) | 3~30 |
Resonant Frequency (Hz) | 2700±500 |
Max. Current Consumption (mA) | 5 |
Capacitance at 1,000HZ (pF) | 30000±30% |
Operating Temperature (C) | -20~+70 |
Storage Temperature (C) | -30~+80 |
Weight (g) | 1 |

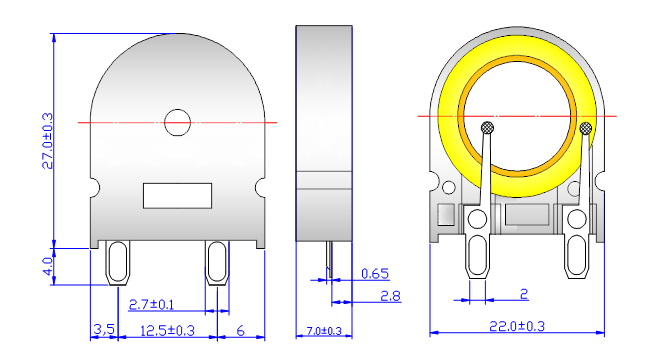

Appearance Drawing
