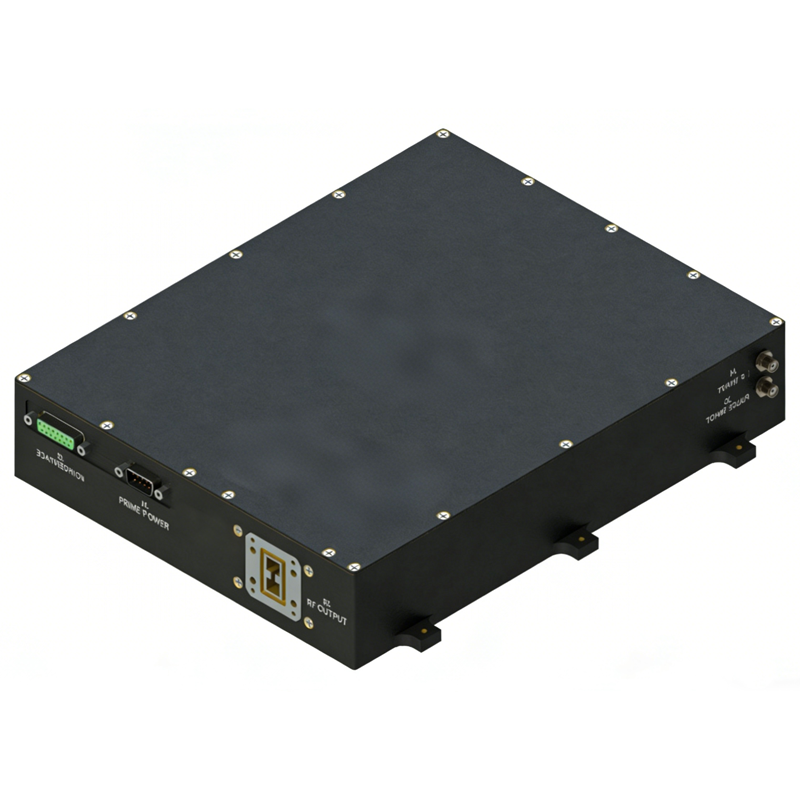

The MNS-MPM200W-18G is a microwave power module (MPM) operating across the 6 to 18 GHz frequency band. As a high-performance power amplifier, this MPM delivers 200 Watts of pulsed/CW RF output power.
Its RF signal path consists of a solid-state amplifier and a vacuum power booster. The power supply topology leverages proprietary low-noise, high-efficiency designs to drive the RF signal path with exceptional stability. A high-speed modulator is integrated to support pulse modulation up to 10 kHz, as well as continuous wave (CW) operation. This compact, conduction-cooled MPM is engineered for reliable operation in extreme military environments.
Electrical
Frequency Range: 6 to 18 GHz
Output Power: 200 Watts CW @ 6.5 to 18 GHz
150 Watts CW @ 6.0 to 6.5 GHz
Pulse Operation: PRF: 10 KHz max.
Pulse width: 1.0 μsec to CW
Gain at Rated Power: 53 dB
Harmonics: -2 dBc @ 6.0 GHz
Spurious: -50 dBc
Input VSWR (50 Ω Impedance): 2.0:1
Load VSWR: 1.5:1, max. for full specification compliance
Prime Power Input: 270 VDC (or 28 VDC option)
TWTA Protection: Helix Over-Current
Cathode Over-Voltage
Over-Temperature
Status/Indication: Equipment status, faults
Interface Control: Discrete logic
Modulation Control: Differential or TTL
Mechanical
Connectors:
·RF Input: SMA (F)
·RF Output: WRD-650 Waveguide
·Prime Power: DB-9
·Control/Pulse Input: DB-15
Dimensions: 11" (L) x 9.38" (W) x 2.15" (H)
Weight: 8.5 lbs.
Cooling: Conduction
Environmental
Vibration: 10 to 1000 Hz, 0.02g²/Hz
Shock: 15 g, 11 msec, Half Saw Tooth
Operating Temperature: -40° C to +75° C (Base Plate Temperature)
Storage Temperature: -54° C to +85° C
Operating Altitude: Up to 50,000 feet
Humidity: Up to 95% RH Non-Condensing
