The Microwave Power Module - MNS-SSPA18G adopts innovative gallium nitride (GaN) technology, covering an ultra-wide frequency band of 2.0–18.0 GHz, with a mid-band continuous-wave output power up to 200 W. Developed for military-grade wideband high-performance applications compliant with military standards, it features high reliability as the core guarantee for stable system operation. Adopting a liquid-cooled packaging design with a compact and lightweight structure, the product supports multiple power supply options: 28 VDC, 270 VDC, and three-phase 400 Hz. It is widely applied in electronic countermeasures (ECM), electronic warfare simulation, multi-band communication and other fields.
Electrical
Frequency Range: 2.0 to 18.0 GHz
Output Power CW (with coolant at 20° C): 150 watts from 2-4 GHz
200 watts from 4-9 GHz
150 watts from 9 to 16 GHz
100 watts from 16 to 18 GHz
Small Signal Gain: 50 dB, min.
RF Input Power for Saturation: 0 +/- 1 dBm
Duty Cycle: 100% (CW)
Input VSWR: 2.0:1, max.
Output VSWR: 2.0:1, max.
Load VSWR: 1.5:1, max., Full Spec Compliance
Load VSWR: 2.5:1, max, No Damage
Prime Input Voltage: 28 VDC, 270 VDC, or 3 phase 400 Hz, 60 Hz
Prime Power: 1400W max (1300W typical), 1300W typical
Interface Control: RS-485
Mechanical
Dimensions: 14.0" (L) x 9.0" (W) x 6.0" (H)
Weight: 32 lbs., nominal
Cooling: Liquid cooled Thermal Management with integrated liquid cooled heatsinks

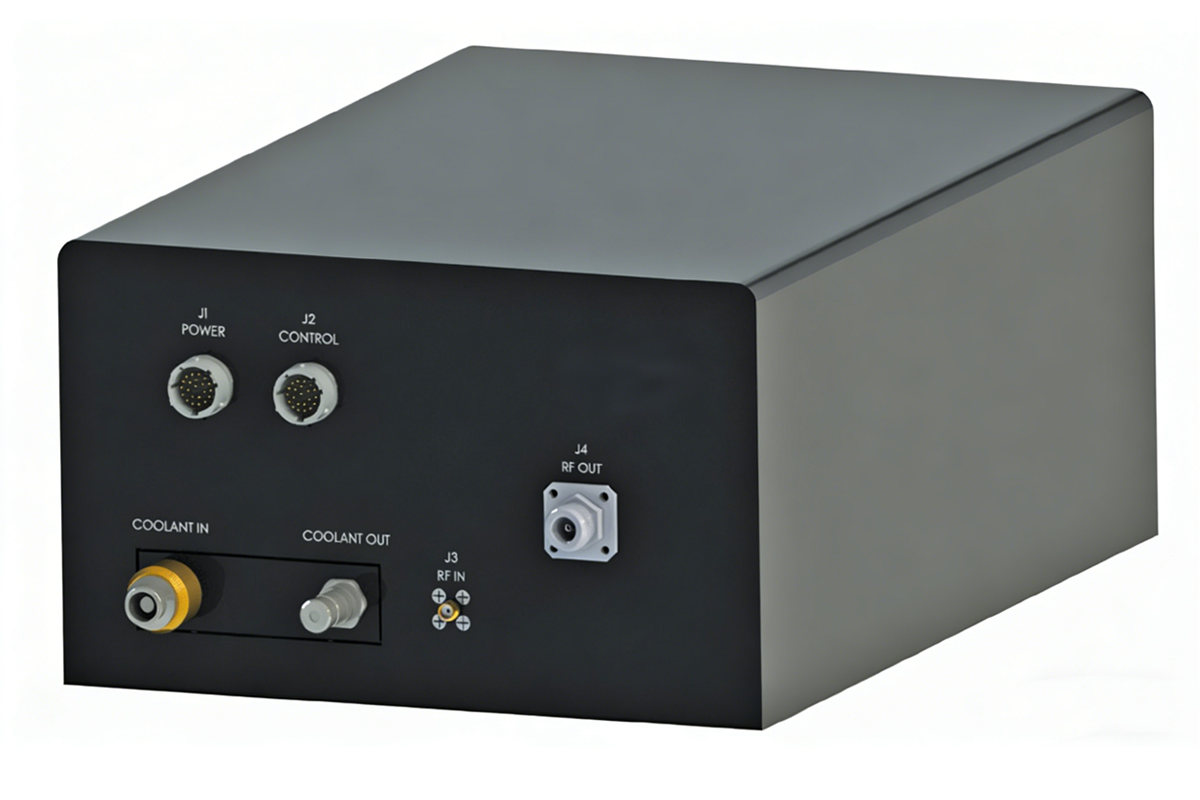

Connectors:
·Prime Power: MS3112 series
·Control/Status: MS3112E14-18
·RF Input: Type SMA (F)
Environmental
Ambient Temperature: -40° C to +71° C (with liquid maintained at +25° C)
Storage Temperature: -54° C to +90° C
Operating Altitude: Up to 50,000 feet ASL
