80dB 9V 4000Hz Wire Thin Piezo Buzzer

  • MSPT17B40W100V9
  • 16.5 * 3.3mm
  • 9Vp-p
  • 4000±500HZ
  • ≥80dB@10cm
  • ≤2mA
  • 1~25Vp-p
  • MSPT17B40W100V9.pdf


Min. Sound Output at 10cm (dB)80
Rated Voltage (Vp-p)9
Operating Voltage (Vp-p)1~25
Resonant Frequency (Hz)4000+/-500
Max. Current Consumption (mA)2
Capacitance at 1,000HZ (pF)14000+/-30%
Operating Temperature (C)-20~+60
Storage Temperature (C)-30~+70
Weight (g)0.9

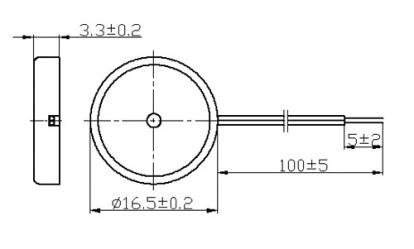

Appearance Drawing
